GARR GARR 16044

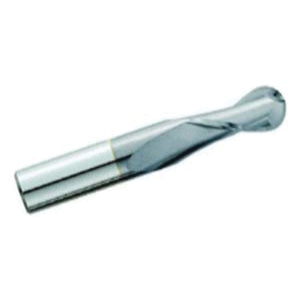

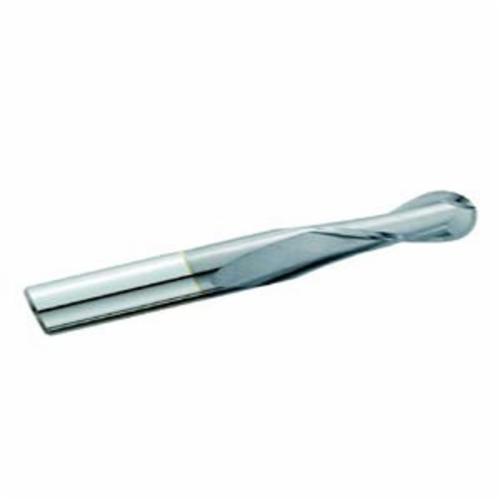

GARR 16044 320MC Ball End Center Cutting Single End Standard Length End Mill, 5/64 in Dia Cutter, 1/4 in Length of Cut, 2 Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, TiCN Coated
Invoice description:
Bem 5/64x1/4locx1/8x 1-1/2 2fl Ticn
Factory Order
GARR End Mill, Ball End Center Cutting Single End Standard Length, Series: 320MC, 5/64 in Diameter Cutter, 1-1/2 in Overall Length, 1/4 in Length of Cut, 2 Flutes, Spiral Flute, 1/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, 1-1/4 in Shank Length, Solid Submicron Carbide, TiCN Coated
Features
- Improved lubricity and abrasion resistance
- Up to 25% faster than uncoated
- Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)
Specifications
Cutter Diameter5/64 in
Cutting DirectionRight Hand
FinishTiCN Coated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut1/4 in
MaterialSolid Submicron Carbide
Number of Flutes2
Overall Length1-1/2 in
Series320MC
Shank Diameter1/8 in
Shank Length1-1/4 in
TypeBall End Center Cutting Single End Standard Length
Additional Information
Country of OriginUS
Specification Sheet
