GARR GARR 16037

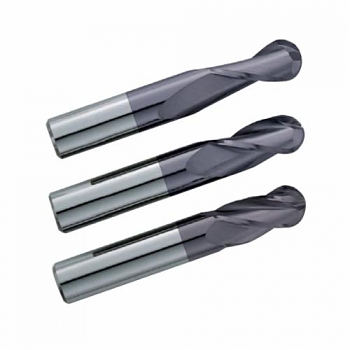

GARR 16037 320MA Ball End Center Cutting Single End Standard Length Ball End Mill, 1/16 in Dia Cutter, 1/4 in Length of Cut, 2 Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, TiALN Coated
Invoice description:
Bem 1/16x1/4locx1/8x 1-1/2 2fl Tialn
Factory Order
GARR Ball End Mill, Center Cutting Single End Standard Length, Series: 320MA, 1/16 in Diameter Cutter, 1-1/2 in Overall Length, 1/4 in Length of Cut, 2 Flutes, Spiral Flute, 1/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, 1-1/4 in Shank Length, Solid Submicron Grain Carbide, TiAlN Coated
Features
- Up to 40% faster than uncoated
- Extremely versatile
- Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)
Specifications
ApplicationDry or Semi-Dry Machining
Cutter Diameter1/16 in
Cutting DirectionRight Hand
FinishTiALN Coated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut1/4 in
MaterialSolid Submicron Carbide
Number of Flutes2
Overall Length1-1/2 in
Series320MA
Shank Diameter1/8 in
Shank Length1-1/4 in
TypeBall End Center Cutting Single End Standard Length
Additional Information
Country of OriginUS
Specification Sheet
