GARR GARR 16027

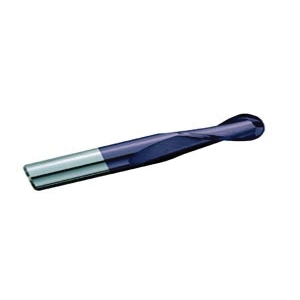

GARR 16027 320MA Ball Nose Center Cutting Standard Length End Mill, 3/64 in Dia Cutter, 1/8 in Length of Cut, 2 Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, TiAlN Coated

Invoice description: Bem 3/64x1/8locx1/8x 1-1/2 2fl Tialn

UNSPSC: 27112803
Manufacturer PN: 16027
$21.16 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR End Mill, Ball Nose Center Cutting Standard Length, Series: 320MA, 3/64 in Diameter Cutter, 1-1/2 in Overall Length, 1/8 in Length of Cut, 2 Flutes, Helix Flute, 1/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Submicron Solid Carbide, TiAlN Coated

  • Features

  • Up to 40% faster than uncoated
  • Extremely versatile
  • Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)

Specifications

ApplicationDry or Semi-Dry Machining
Cutter Diameter3/64 in
Cutting DirectionRight Hand
FinishTiAlN Coated
Flute TypeHelix
Helix Angle30 deg
Length of Cut1/8 in
MaterialSubmicron Solid Carbide
Number of Flutes2
Overall Length1-1/2 in
Series320MA
Shank Diameter1/8 in
TypeBall Nose Center Cutting Standard Length

Additional Information

Country of OriginUS
