GARR GARR 16024

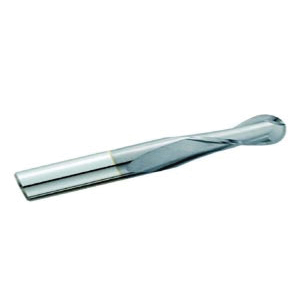

GARR 16024 320MC Ball Nose Center Cutting Standard Length Ball End Mill, 3/64 in Dia Cutter, 1/8 in Length of Cut, 2 Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, TiCN Coated

UNSPSC: 27112803
Manufacturer PN: 16024
$20.76 EA
In stock (2)
QTY:


GARR Ball End Mill, Center Cutting Single End Standard Length, Series: 320MC, 3/64 in Diameter Cutter, 1-1/2 in Overall Length, 1/8 in Length of Cut, 2 Flutes, Spiral Flute, 1/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Solid Submicron Grain Carbide, TiCN Coated

  • Features

  • Improved lubricity and abrasion resistance
  • Up to 25% faster than uncoated
  • Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)

Specifications

Cutter Diameter3/64 in
Cutting DirectionRight Hand
FinishTiCN Coated
Flute TypeHelix
Helix Angle30 deg
Length of Cut1/8 in
MaterialSubmicron Solid Carbide
Number of Flutes2
Overall Length1-1/2 in
Series320MC
Shank Diameter1/8 in
TypeBall Nose Center Cutting Standard Length
