GARR GARR 16014

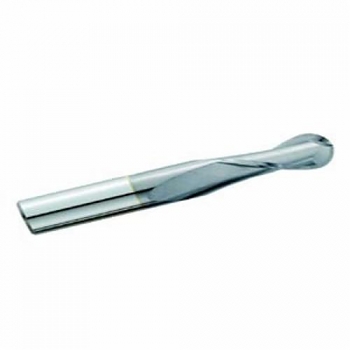

GARR 16014 320MC Ball End Center Cutting Single End Standard Length Ball End Mill, 1/32 in Dia Cutter, 3/32 in Length of Cut, 2 Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, TiCN Coated

UNSPSC: 23242511
Manufacturer PN: 16014
$20.76 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR Ball End Mill, Center Cutting Single End Standard Length, Series: 320MC, 1/32 in Diameter Cutter, 1-1/2 in Overall Length, 3/32 in Length of Cut, 2 Flutes, Spiral Flute, 1/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, 1-13/32 in Shank Length, Solid Submicron Grain Carbide, TiCN Coated

  • Features

  • Improved lubricity and abrasion resistance
  • Up to 25% faster than uncoated
  • Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)

Specifications

Cutter Diameter1/32 in
Cutting DirectionRight Hand
FinishTiCN Coated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut3/32 in
MaterialSolid Submicron Carbide
Number of Flutes2
Overall Length1-1/2 in
Series320MC
Shank Diameter1/8 in
Shank Length1-13/32 in
TypeBall End Center Cutting Single End Standard Length
