GARR GARR 15300

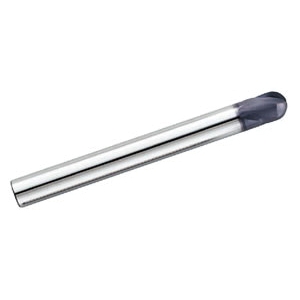

GARR 15300 950MX Ball End Center Cutting Die Mold Cutter End Mill, 12 mm Dia Cutter, 12 mm Length of Cut, 2 Flutes, 12 mm Dia Shank, 100 mm OAL, AlTiN/X.CEED Coated

UNSPSC: 27112803
Manufacturer PN: 15300
$126.72 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR End Mill, Ball End Center Cutting Die Mold Cutter, Series: 950MX, 12 mm Diameter Cutter, 100 mm Overall Length, 12 mm Length of Cut, 2 Flutes, Spiral Flute, 12 mm Shank Diameter, Right Hand Cutting Direction, 15 deg Helix Angle, Submicron Solid Carbide, AlTiN/X.CEED Coated

  • Features

  • Rigid work holding, machine stability and part integrity are critical
  • Carbide tested and selected for specific application
  • Radius tolerance +0.0000 to 0.0005 in (+0.0000 to 0.0127 mm)
  • < or = 5 mm (0.1969 in) Dia have 5 deg taper to shank
  • Can be modified with a neck in 48 hrs

Specifications

ApplicationFor high Rockwell materials and high performance machining in the die mold industry
Cutter Diameter12 mm
Cutting DirectionRight Hand
FinishAlTiN/X.CEED Coated
Flute TypeSpiral
Helix Angle15 deg
Length of Cut12 mm
MaterialSubmicron Solid Carbide
Number of Flutes2
Overall Length100 mm
Series950MX
Shank Diameter12 mm
TypeBall End Center Cutting Die Mold Cutter
