GARR GARR 15238

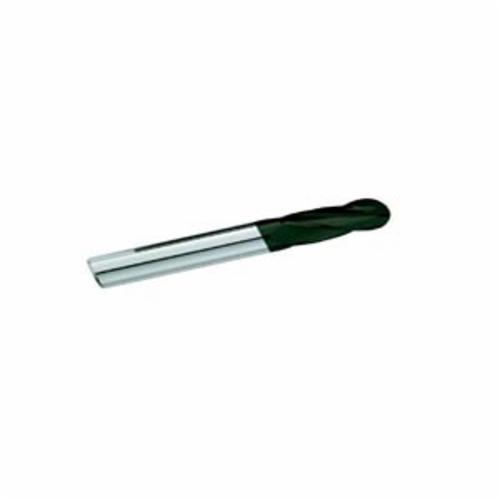

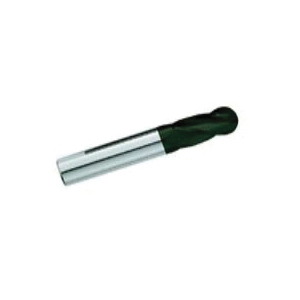

GARR 15238 310D Ball End Center Cutting Standard Length Ball End Mill, 3/8 in Dia Cutter, 7/8 in Length of Cut, 4 Flutes, 3/8 in Dia Shank, 2-1/2 in OAL, Crystalline Diamond Coated

UNSPSC: 23242511
Manufacturer PN: 15238
$221.80 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR Ball End Mill, Center Cutting High Performance Standard Length, Series: 310D, 3/8 in Diameter Cutter, 2-1/2 in Overall Length, 7/8 in Length of Cut, 4 Flutes, Spiral Flute, 3/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, 1-5/8 in Shank Length, Solid Grade C-2 Carbide, Crystalline Diamond Coated

  • Features

  • Up to 17 times tool life versus uncoated end mills
  • For graphite, fiber reinforced plastics, carbon fiber and high silicon aluminum
  • Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)

Specifications

Cutter Diameter3/8 in
Cutting DirectionRight Hand
FinishCrystalline Diamond Coated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut7/8 in
MaterialSolid Grade C-2 Carbide
Number of Flutes4
Overall Length2-1/2 in
Series310D
Shank Diameter3/8 in
Shank Length1-5/8 in
TypeBall End Center Cutting Standard Length

Documents
