GARR GARR 15158

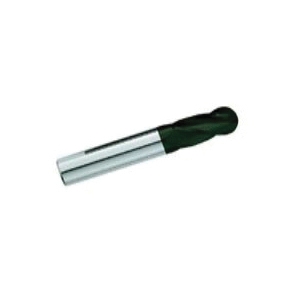

GARR 15158 310D Ball End Center Cutting Standard Length High Performance End Mill, 1/4 in Dia Cutter, 3/4 in Length of Cut, 4 Flutes, 1/4 in Dia Shank, 2-1/2 in OAL, Crystalline Diamond Coated
Factory Order
GARR High Performance End Mill, Ball End Center Cutting Standard Length, Series: 310D, 1/4 in Diameter Cutter, 2-1/2 in Overall Length, 3/4 in Length of Cut, 4 Flutes, Spiral Flute, 1/4 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, 1-3/4 in Shank Length, Solid Grade C-2 Carbide, Crystalline Diamond Coated
Features
- Up to 17 times tool life versus uncoated end mills
- For graphite, fiber reinforced plastics, carbon fiber and high silicon aluminum
- Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)
Specifications
Cutter Diameter1/4 in
Cutting DirectionRight Hand
FinishCrystalline Diamond Coated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut3/4 in
MaterialSolid Grade C-2 Carbide
Number of Flutes4
Overall Length2-1/2 in
Series310D
Shank Diameter1/4 in
Shank Length1-3/4 in
TypeBall End Center Cutting Standard Length
Specification Sheet
