GARR GARR 42764

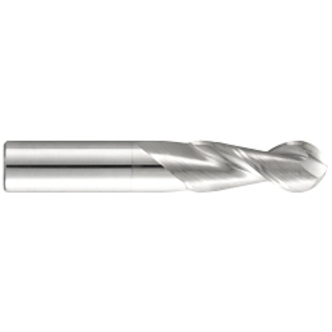

GARR 42764 142B Center Cutting High Performance HSAL Ball End Mill, 1/4 in Dia Cutter, 3/8 in Length of Cut, 2 Flutes, 1/4 in Dia Shank, 4 in OAL, Alumastar Coated
Invoice description:
Bem 1/4x3/8locx1/4x4 2fl Alum
Factory Order
GARR Ball End Mill, Center Cutting High Performance HSAL, Series: 142B, 1/4 in Diameter Cutter, 4 in Overall Length, 3/8 in Length of Cut, 2 Flutes, Spiral Flute, 1/4 in Shank Diameter, 41 deg Helix Angle, Submicron Grain Solid Carbide, Alumastar Coated
Features
- Specific coating engineered to repel aluminum
- Engineered to run at 750 to 2500 sfm
- High velocity - high metal removal rate
- Use properly balanced holders
- Holds perpendicularity
- Flats can be added within 48 hr for a nominal charge
- 0.0005 in ball radius tolerance
Specifications
ApplicationFor high speed machining of aluminum
Cutter Diameter1/4 in
FinishAlumastar Coated
Flute TypeSpiral
Helix Angle41 deg
Length of Cut3/8 in
MaterialSubmicron Grain Solid Carbide
Number of Flutes2
Overall Length4 in
Series142B
Shank Diameter1/4 in
TypeCenter Cutting High Performance HSAL
Additional Information
Standards/ApprovalPROP65: This product can expose you to chemicals including cobalt, which is known to the State of California to cause cancer
Country of OriginUS
