GARR GARR 08060

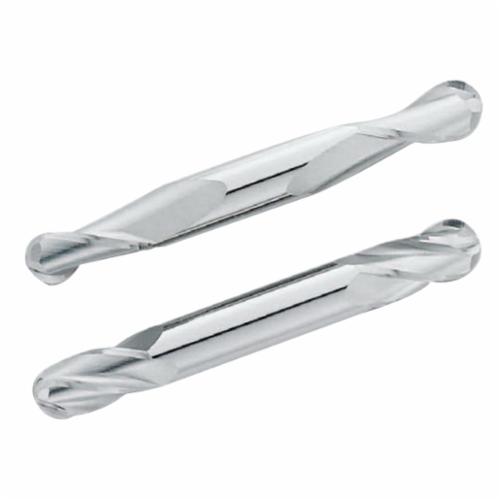

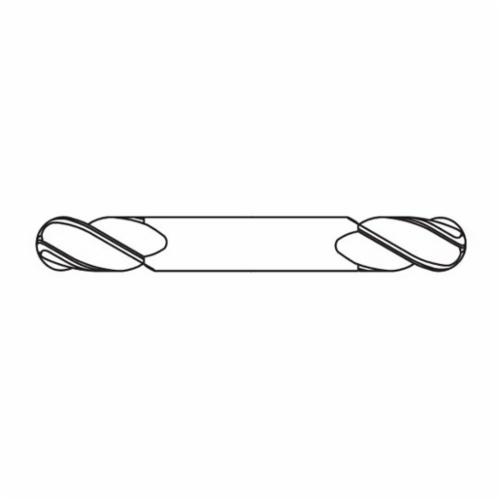

GARR 08060 Ball End Center Cutting Double End Stub Length End Mill, 5/32 in Dia Cutter, 5/16 in Length of Cut, 4 Flutes, 3/16 in Dia Shank, 2 in OAL, Uncoated

Invoice description: Bem 5/32x5/16locx3/16x2 4fl N/c Dbl Stub

UNSPSC: 23242511
Manufacturer PN: 08060
$32.64 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR Ball End Mill, Center Cutting Double End Stub Length, Series: 195M, 5/32 in Diameter Cutter, 2 in Overall Length, 5/16 in Length of Cut, 4 Flutes, Spiral Flute, 3/16 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, 1-11/16 in Shank Length, Solid Submicron Grain Carbide, Uncoated

  • Features

  • Shorter flute length for rigidity
  • Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)

Specifications

Cutter Diameter5/32 in
Cutting DirectionRight Hand
FinishUncoated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut5/16 in
MaterialSolid Submicron Carbide
Number of Flutes4
Overall Length2 in
Series195M
Shank Diameter3/16 in
Shank Length1-11/16 in
TypeBall End Center Cutting Double End Stub Length

Additional Information

Country of OriginUS
