GARR GARR 08047

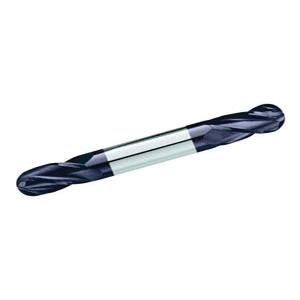

GARR 08047 195MA Ball Nose Center Cutting Stub Length Double End Mill, 0.093 in Dia Cutter, 3/16 in Length of Cut, 4 Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, TiAlN Coated

UNSPSC: 27112803
Manufacturer PN: 08047
$34.70 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR End Mill, Ball Nose Center Cutting Stub Length Double End, Series: 195MA, 0.093 in Diameter Cutter, 1-1/2 in Overall Length, 3/16 in Length of Cut, 4 Flutes, 1/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Submicron Solid Carbide, TiAlN Coated

  • Features

  • Shorter flute length for rigidity
  • Extremely versatile
  • Up to 40% faster than uncoated
  • Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)

Specifications

ApplicationDry or Semi-Dry Machining
Cutter Diameter0.093 in
Cutting DirectionRight Hand
FinishTiAlN Coated
Helix Angle30 deg
Length of Cut3/16 in
MaterialSubmicron Solid Carbide
Number of Flutes4
Overall Length1-1/2 in
Series195MA
Shank Diameter1/8 in
TypeBall Nose Center Cutting Stub Length Double End
