GARR GARR 08027

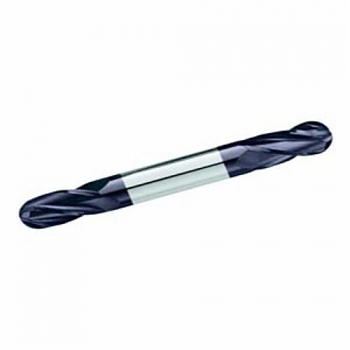

GARR 08027 195MA Ball End Center Cutting Double End Stub Length End Mill, 3/64 in Dia Cutter, 3/32 in Length of Cut, 4 Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, TiALN Coated

UNSPSC: 23242511
Manufacturer PN: 08027
$34.70 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR End Mill, Ball End Center Cutting Double End Stub Length, Series: 195MA, 3/64 in Cutter Dia, 1-1/2 in Overall Length, 3/32 in Length of Cut, 4 Flutes, 1/8 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, 1-13/32 in Shank Length, Solid Submicron Carbide, TiALN Coated

  • Features

  • Shorter flute length for rigidity
  • Extremely versatile
  • Up to 40% faster than uncoated
  • Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)

Specifications

ApplicationDry or Semi-Dry Machining
Cutter Diameter3/64 in
Cutting DirectionRight Hand
FinishTiALN Coated
Helix Angle30 deg
Length of Cut3/32 in
MaterialSolid Submicron Carbide
Number of Flutes4
Overall Length1-1/2 in
Series195MA
Shank Diameter1/8 in
Shank Length1-13/32 in
TypeBall End Center Cutting Double End Stub Length

Documents
