GARR GARR 07667

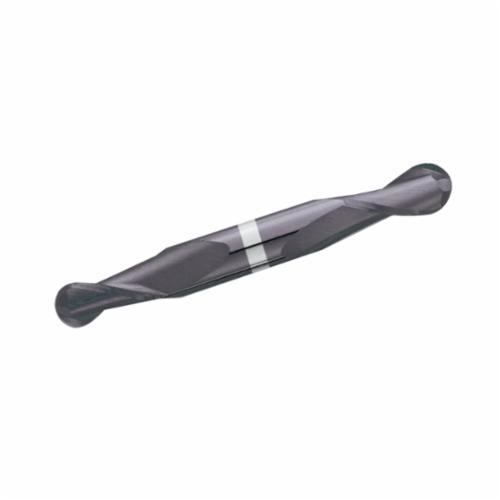

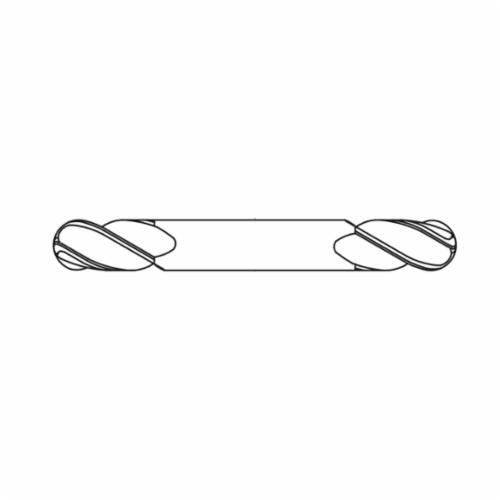

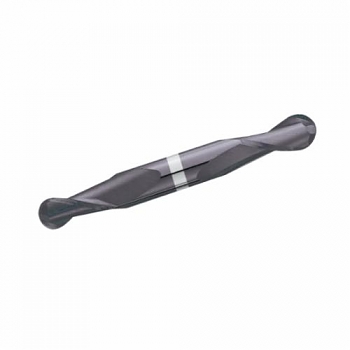

GARR 07667 985MA Ball End Center Cutting Double End Stub Length End Mill, 12 mm Dia Cutter, 16 mm Length of Cut, 2 Flutes, 12 mm Dia Shank, 75 mm OAL, TiALN Coated
Invoice description:
Bem 12x16locx12x75mm 2fl Tialn Dbl Stub
Factory Order
GARR End Mill, Ball End Center Cutting Double End Stub Length, Series: 985MA, 12 mm Diameter Cutter, 75 mm Overall Length, 16 mm Length of Cut, 2 Flutes, Spiral Flute, 12 mm Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, 59 mm Shank Length, Solid Submicron Carbide, TiALN Coated
Features
- Shorter flute length for rigidity
- Extremely versatile
- Up to 40% faster than uncoated
- Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)
Specifications
ApplicationDry or Semi-Dry Machining
Cutter Diameter12 mm
Cutting DirectionRight Hand
FinishTiALN Coated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut16 mm
MaterialSolid Submicron Carbide
Number of Flutes2
Overall Length75 mm
Series985MA
Shank Diameter12 mm
Shank Length59 mm
TypeBall End Center Cutting Double End Stub Length
Additional Information
Country of OriginUS
