GARR GARR 07637

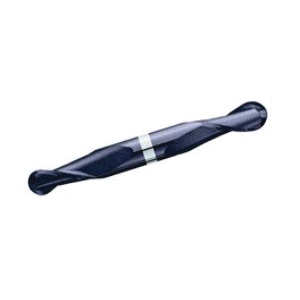

GARR 07637 985MA Ball End Center Cutting Stub Length Double End Mill, 9 mm Dia Cutter, 14 mm Length of Cut, 2 Flutes, 9 mm Dia Shank, 75 mm OAL, TiAlN Coated
Invoice description:
Bem 9x14locx9x75mm 2fl Tialn Dbl Stub
Factory Order
GARR End Mill, Ball End Center Cutting Stub Length Double End, Series: 985MA, 9 mm Cutter Dia, 75 mm Overall Length, 14 mm Length of Cut, 2 Flutes, Spiral Flute, 9 mm Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Submicron Solid Carbide, TiAlN Coated
Features
- Shorter flute length for rigidity
- Extremely versatile
- Up to 40% faster than uncoated
- Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)
Specifications
ApplicationDry or Semi-Dry Machining
Cutter Diameter9 mm
Cutting DirectionRight Hand
FinishTiAlN Coated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut14 mm
MaterialSubmicron Solid Carbide
Number of Flutes2
Overall Length75 mm
Series985MA
Shank Diameter9 mm
TypeBall End Center Cutting Stub Length Double End
Additional Information
Country of OriginUS
