GARR GARR 07520

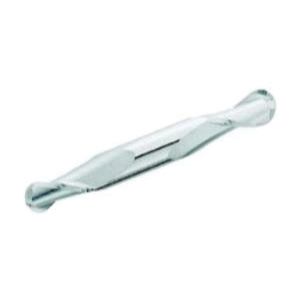

GARR 07520 985M Ball End Center Cutting Stub Length Double End Mill, 1.5 mm Dia Cutter, 3 mm Length of Cut, 2 Flutes, 3 mm Dia Shank, 38 mm OAL, Uncoated
Invoice description:
Bem 1.5x3locx3x38mm 2fl N/c Dbl Stub
Factory Order
GARR End Mill, Ball End Center Cutting Stub Length Double End, Series: 985M, 1.5 mm Cutter Dia, 38 mm Overall Length, 3 mm Length of Cut, 2 Flutes, Spiral Flute, 3 mm Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Submicron Solid Carbide, Uncoated
Features
- Shorter flute length for rigidity
- Extremely versatile
- Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)
Specifications
Cutter Diameter1.5 mm
Cutting DirectionRight Hand
FinishUncoated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut3 mm
MaterialSubmicron Solid Carbide
Number of Flutes2
Overall Length38 mm
Series985M
Shank Diameter3 mm
TypeBall End Center Cutting Stub Length Double End
Additional Information
Country of OriginUS
