GARR GARR 04547

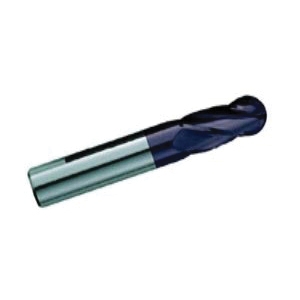

GARR 04547 990MA Ball End Center Cutting Single End Stub Length End Mill, 2.5 mm Dia Cutter, 5 mm Length of Cut, 4 Flutes, 3 mm Dia Shank, 38 mm OAL, TiALN Coated
Invoice description:
Bem 2.5x5locx3x38mm 4fl Tialn Stub
Factory Order
GARR End Mill, Ball End Center Cutting Single End Stub Length, Series: 990MA, 2.5 mm Diameter Cutter, 38 mm Overall Length, 5 mm Length of Cut, 4 Flutes, Spiral Flute, 3 mm Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Plain/Round Shank, 33 mm Shank Length, Solid Submicron Carbide, TiALN Coated
Features
- Shorter flute length for rigidity
- Up to 40% faster than uncoated
- Extremely versatile
- Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)
Specifications
ApplicationDry or Semi-Dry Machining
Cutter Diameter2.5 mm
Cutting DirectionRight Hand
FinishTiALN Coated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut5 mm
MaterialSolid Submicron Carbide
Number of Flutes4
Overall Length38 mm
Series990MA
Shank Diameter3 mm
Shank Length33 mm
Shank TypePlain/Round
TypeBall End Center Cutting Single End Stub Length
Additional Information
Country of OriginUS
Specification Sheet
