GARR GARR 03640

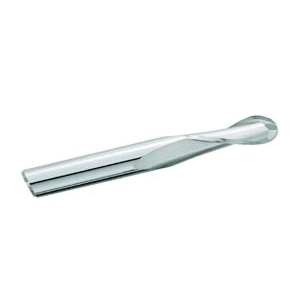

GARR 03640 980M Ball End Center Cutting Stub Length End Mill, 10 mm Dia Cutter, 16 mm Length of Cut, 2 Flutes, 10 mm Dia Shank, 50 mm OAL
Invoice description:
Bem 10x16locx10x50mm 2fl Stub
Factory Order
GARR End Mill, Ball End Center Cutting Stub Length, Series: 980M, 10 mm Diameter Cutter, 50 mm Overall Length, 16 mm Length of Cut, 2 Flutes, Spiral Flute, 10 mm Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Submicron Solid Carbide
Features
- Shorter flute length for rigidity
- Extremely versatile
- Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)
Specifications
Cutter Diameter10 mm
Cutting DirectionRight Hand
Flute TypeSpiral
Helix Angle30 deg
Length of Cut16 mm
MaterialSubmicron Solid Carbide
Number of Flutes2
Overall Length50 mm
Series980M
Shank Diameter10 mm
TypeBall End Center Cutting Stub Length
Additional Information
Country of OriginUS
Specification Sheet
