GARR GARR 03120

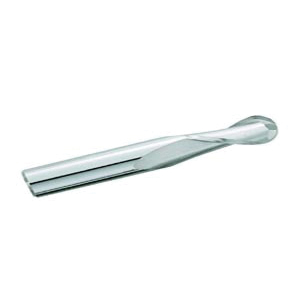

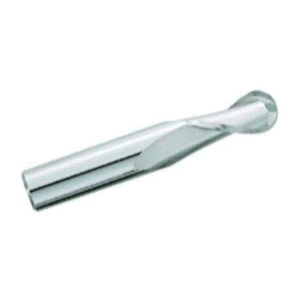

GARR 03120 180M Ball Nose Center Cutting Stub Length End Mill, 7/16 in Dia Cutter, 5/8 in Length of Cut, 2 Flutes, 7/16 in Dia Shank, 2-1/2 in OAL

Invoice description: Bem 7/16x5/8locx7/16x 2-1/2 2fl Stub

UNSPSC: 27112803
Manufacturer PN: 03120
$43.76 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR End Mill, Ball Nose Center Cutting Stub Length, Series: 180M, 7/16 in Cutter Dia, 2-1/2 in Overall Length, 5/8 in Length of Cut, 2 Flutes, Spiral Flute, 7/16 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Submicron Solid Carbide

  • Features

  • Shorter flute length for rigidity
  • Extremely versatile
  • Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)

Specifications

Cutter Diameter7/16 in
Cutting DirectionRight Hand
Flute TypeSpiral
Helix Angle30 deg
Length of Cut5/8 in
MaterialSubmicron Solid Carbide
Number of Flutes2
Overall Length2-1/2 in
Series180M
Shank Diameter7/16 in
TypeBall Nose Center Cutting Stub Length

Additional Information

Country of OriginUS
