  5. GARR 03107

GARR GARR 03107

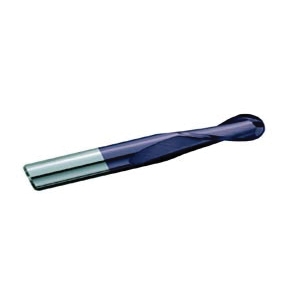

GARR 03107 180MA Ball Nose Center Cutting Stub Length End Mill, 5/16 in Dia Cutter, 1/2 in Length of Cut, 2 Flutes, 5/16 in Dia Shank, 2 in OAL, TiAlN Coated

UNSPSC: 27112803
Manufacturer PN: 03107
$36.14 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR End Mill, Ball Nose Center Cutting Stub Length, Series: 180MA, 5/16 in Diameter Cutter, 2 in Overall Length, 1/2 in Length of Cut, 2 Flutes, Spiral Flute, 5/16 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Submicron Solid Carbide, TiAlN Coated

  • Features

  • Shorter flute length for rigidity
  • Extremely versatile
  • Up to 40% faster than uncoated
  • Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)

Specifications

ApplicationDry or Semi-Dry Machining
Cutter Diameter5/16 in
Cutting DirectionRight Hand
FinishTiAlN Coated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut1/2 in
MaterialSubmicron Solid Carbide
Number of Flutes2
Overall Length2 in
Series180MA
Shank Diameter5/16 in
TypeBall Nose Center Cutting Stub Length
