Edison BUSS AGC-4

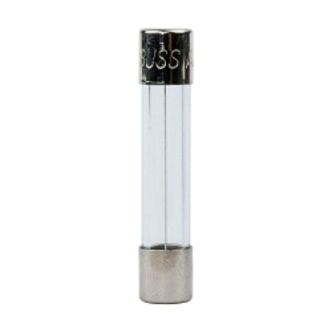

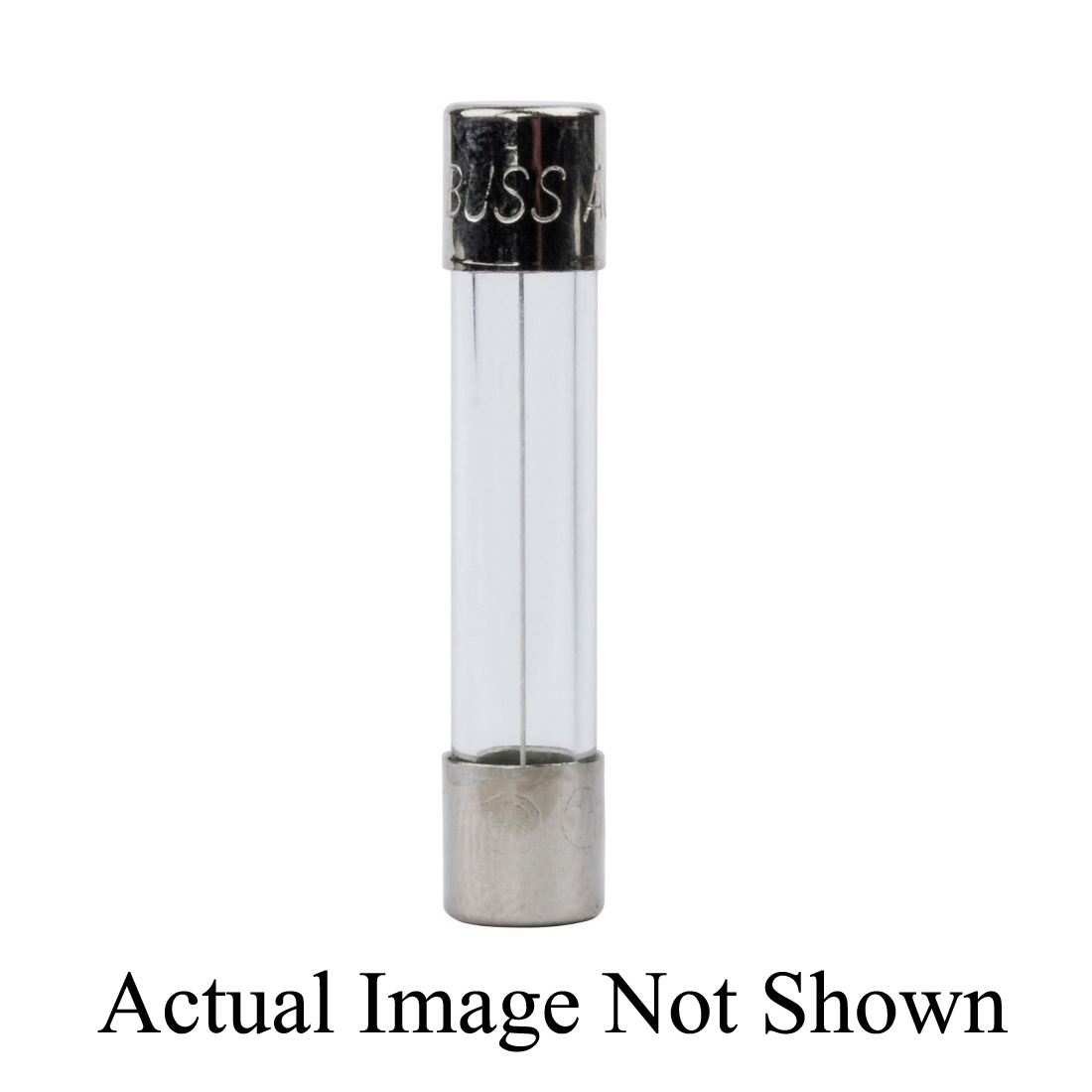

Edison AGC-4 Electronic Small Dimension Fast Acting Fuse With Nickel Plated Brass End Cap, 4 A, 250 VAC, 200 A, 10 kA Interrupt, Cylindrical Body

Invoice description: Fuse Small Dimension 4 Amp 5/pk

UPC: 051712703871
Pack Size: 5
UNSPSC: 39121609
Manufacturer PN: AGC-4
$1.74 EA
Factory Order
Estimated to ship in 7 days
QTY:


Edison Fast Acting Fuse, Electronic Small Dimension, Series: AGC, Non-Indicating, 4 A, 250 VAC, 200 A, 10 kA Interrupt, 6 min, 120 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Glass, 1/4 in Dia x 1-1/4 in L Body

  • Features

  • Fast acting for maximum component protection
  • Wide amp/volt ratings allow versatility of protecting electronic circuits
  • 200 A at 250 VAC, 10 kA at 125 VAC interrupt rating
  • 60 min maximum at 135%, 120 s maximum at 200% response time

Specifications

ApplicationElectronic Circuit Applications
Amperage Rating4 A
Body Size1/4 in Dia x 1-1/4 in L
Body TypeCylindrical
Indicating/Non-IndicatingNon-Indicating
Interrupt Rating200 A, 10 kA
MaterialGlass
Mounting TypeHolder
Response Time6 min, 120 s
SeriesAGC
Terminal TypeFerrule
TypeElectronic Small Dimension
Voltage Rating250 VAC

Additional Information

Standards/ApprovalCSA Certified|CSA Class 1422-01|UL 053787|CE Certi
Country of OriginTW
