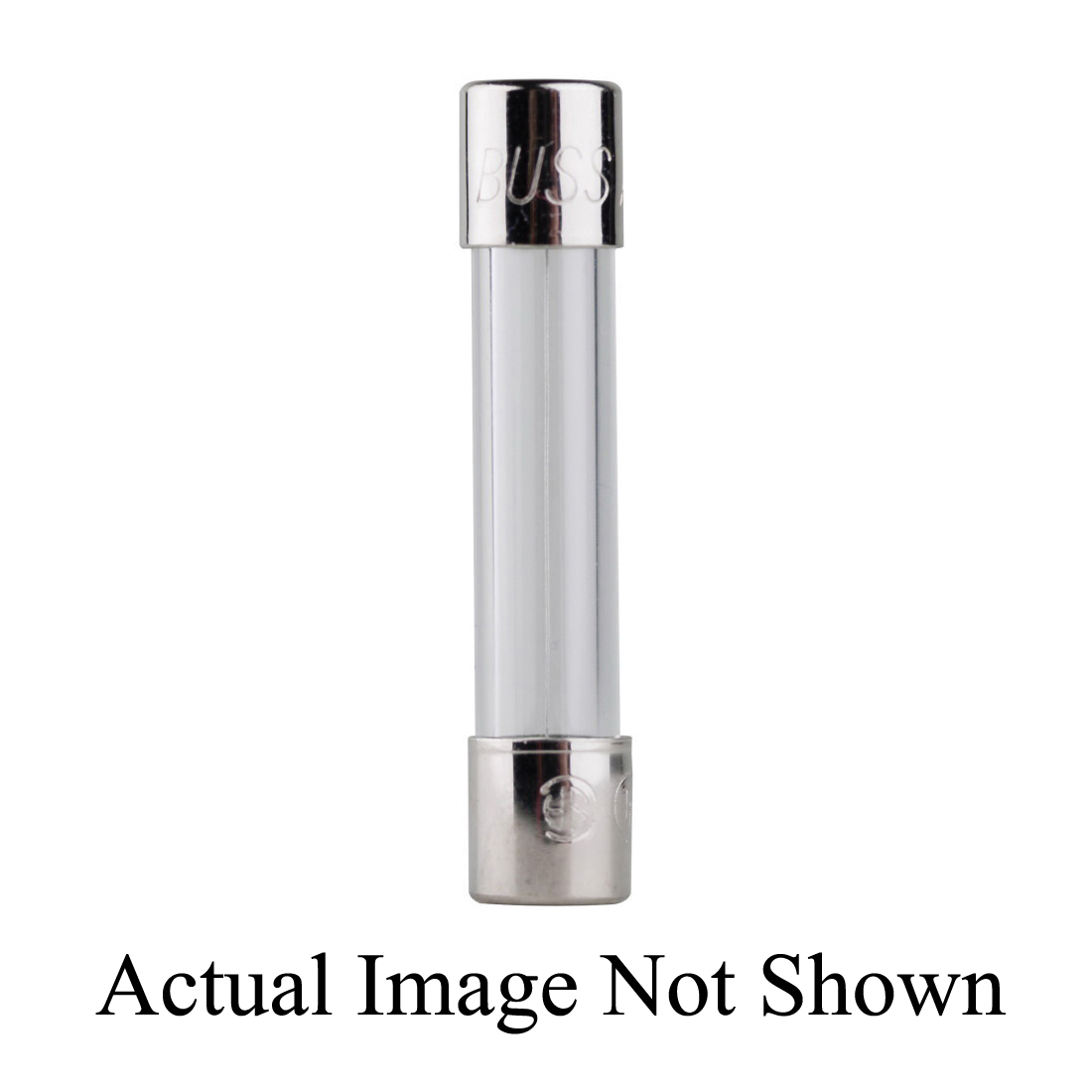

Bussmann BUSS AGC-1
Bussmann AGC-1 Electronic Small Dimension Fast Acting Fuse With Nickel Plated Brass End Cap, 1 A, 250 VAC, 35 A, 10 kA Interrupt, Cylindrical Body
Invoice description:
Fuse Small Dimension 1 Amp
In stock
(70)
Bussmann Fast Acting Fuse, Electronic Small Dimension, Series: AGC, Non-Indicating, 1 A, 250 VAC, 35 A, 10 kA Interrupt, 6 min, 120 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Glass, 1/4 in Dia x 1-1/4 in L Body
Features
- Fast acting for maximum component protection
- Wide amp/volt ratings allow versatility of protecting electronic circuits
- 35 A at 250 VAC, 10 kA at 125 VAC interrupt rating
- 60 min maximum at 135%, 120 s maximum at 200% response time
Specifications
ApplicationElectronic Circuit Applications
Amperage Rating1 A
Body Size1/4 in Dia x 1-1/4 in L
Body TypeCylindrical
Indicating/Non-IndicatingNon-Indicating
Interrupt Rating35 A, 10 kA
MaterialGlass
Mounting TypeHolder
Response Time6 min, 120 s
SeriesAGC
Terminal TypeFerrule
TypeElectronic Small Dimension
Voltage Rating250 VAC
Additional Information
Standards/ApprovalCSA Certified|CSA Class 1422-01|UL 053787|CE Certi
Country of OriginTW
