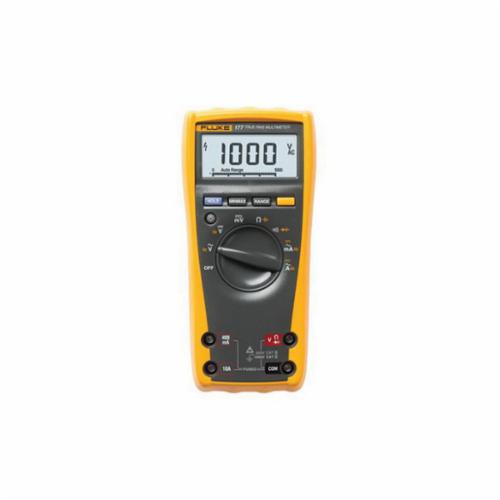

Fluke FLUKE 177 ESFP

Fluke FLUKE-177-ESFP Digital Multimeter, 1000 VDC/VAC, 10 A, 50 MOhm Measuring, 1000 VAC/VDC, 10 A, 50 MOhm, Digital Display

Invoice description: Multimeter Analog/digita L W/ Backlight 1564560

UPC: 095969095198

UNSPSC: 41113630

Manufacturer PN: FLUKE-177-ESFP

^$665.36 EA

Factory Order
Estimated to ship in 7 days

enlarge

Product Overview

Fluke Digital Multimeter, 1000 VDC/VAC, 10 A, 50 MOhm Measuring, 1000 VAC/VDC, 10 A, 100 kHz Frequency, 50 MOhm Resistance, Safety Rating: EN 61010-1 to CAT IV 600 VAC/VDC, CAT III 1000 VAC/VDC, 10000 uF Capacitance, 2% + 3 (500 Hz to 1 kHz) Accuracy, Digital Display, 9 VDC Alkaline NEDA 1604/1604A Battery, Peak Hold: No, Yes Diode Test, 3.54 in W x 1.7 in D x 7.28 in H Dimensions, -10 to 50 deg C, Hard Plastic

Features
Manual and automatic ranging
Display hold and auto-hold
Frequency and capacitance measurements
Minimum maximum/average recording
Closed case calibration through front panel
Ergonomic case with integrated protective holster
Digital 6000 count, update 4/s, bar graph 33 segments, update 40/s
Resistance range - 600 Ohm with accuracy of (0.9% 2), 6 kOhm, 60 kOhm, 600 kOhm, 6 MOhm with accuracy of (0.9% 1), 50 MOhm with accuracy of (1.5% 3)
Capacitance range 1000 nF, 10 uF, 100 uF with accuracy of (1.2% 2), 9999 uF with accuracy of 10% typical
Frequency range 99.99, 999.9, 9.999, 99.99 kHz with accuracy of (0.1% 1)
