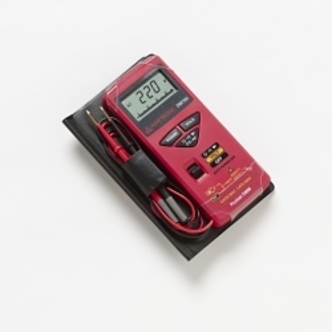

Amprobe FLUKE DM78C

Amprobe DM78C Credit Card Size Digital Multimeter, 3.4 to 600 VAC/VDC, 340 mVAC/mVDC, 340 Ohm/3.4 to 340 kOhm/3.4 to 34 MOhm, LCD Display

Invoice description: Digital Multimeter

UPC: 095969443364
UNSPSC: 41113630
Manufacturer PN: DM78C
Factory Order
Estimated to ship in 30 days
--Price Unavailable--


Amprobe Digital Multimeter, Credit Card Size, 3.4 to 600 VAC/VDC, 340 mVAC/mVDC, 340 Ohm/3.4 to 340 kOhm/3.4 to 34 MOhm Resistance, Safety Rating: CAT III 300 V, CAT II 600 V, +/-1% RDG + 2 Digits, +/-4% RDG + 5 Digits Accuracy, 0.1 mV Resolution, LCD Display, 9 VDC Battery, Yes Diode Test, 5.1 in H x 3.1 in W x 0.6 in D, 0 to 40 deg C

  • Features

  • The DM78C is the smallest go anywhere meter that measures voltage, continuity, diode and resistance
  • Smallest, go anywhere meter
  • 5 functions/16 ranges
  • Auto off saves batteries
  • 3200 count display with analog bargraph
  • 3.4 MOhm +/-3% RDG + 4 digits, 34 MOhm +/-5% RDG + 5 digits resistance accuracy
  • Average sensing meter provides accurate readings when measuring linear loads where the current or voltage has a sinusoidal waveform

Specifications

Accuracy+/-1% RDG + 2 Digits, +/-4% RDG + 5 Digits
Battery Type9 VDC
Dimensions5.1 in H x 3.1 in W x 0.6 in D
Diode TestYes
Display TypeLCD
Resistance340 Ohm/3.4 to 340 kOhm/3.4 to 34 MOhm
Resolution0.1 mV
Safety RatingCAT III 300 V, CAT II 600 V
Temperature Rating0 to 40 deg C
TypeCredit Card Size
Voltage Rating3.4 to 600 VAC/VDC, 340 mVAC/mVDC

Additional Information

IncludesTest Leads, Battery and Protective Case
Warranty1 year
Standards/ApprovalCE Marked|cULus Listed|C-Tick N10140
Country of OriginTW
