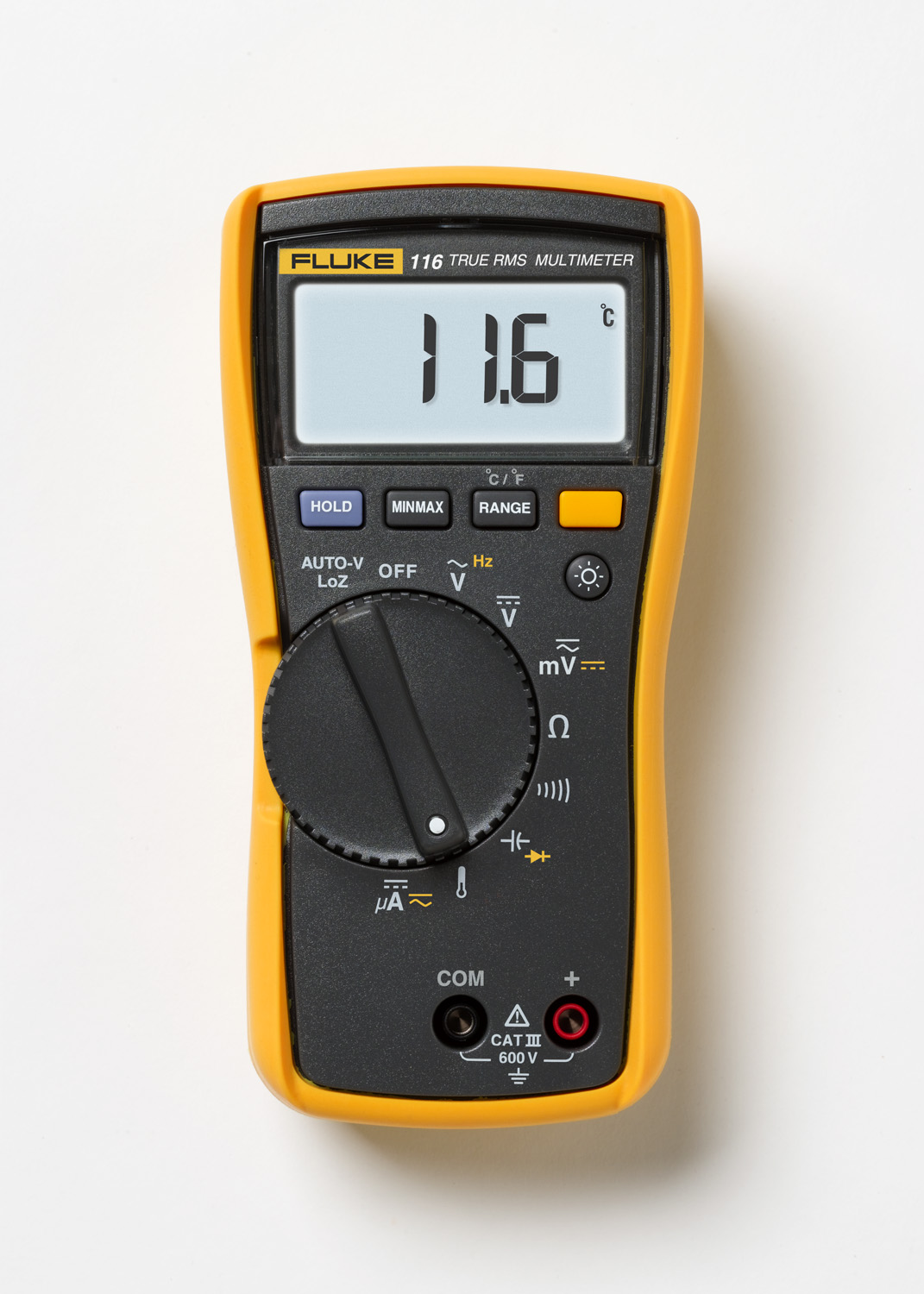

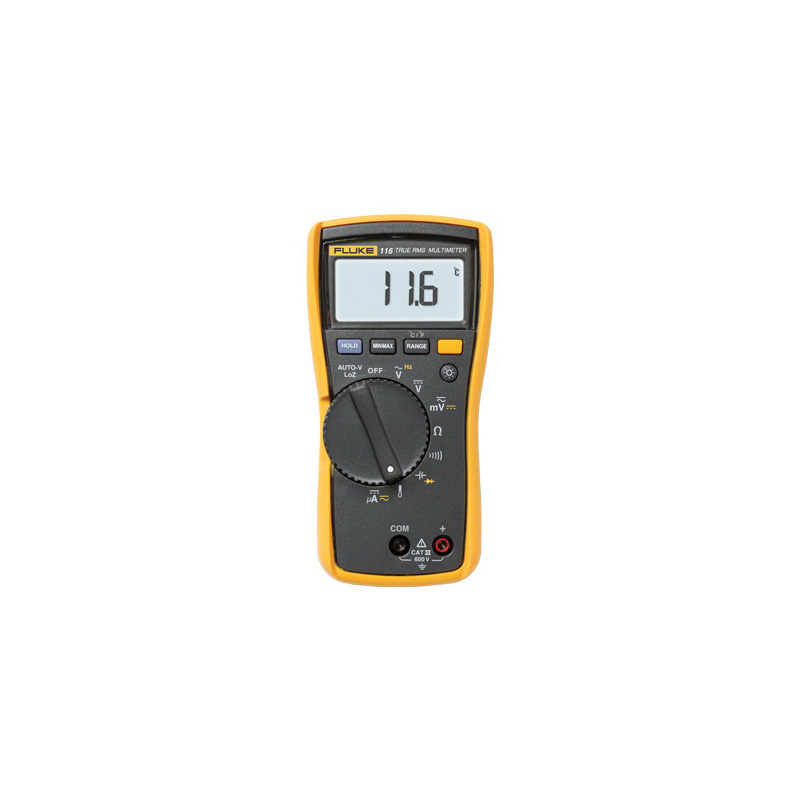

Fluke FLUKE 116

Fluke FLUKE-116 Digital Multimeter, 600 VAC/VDC, 600 uA, 0.1 Ohm to 40 MOhm, Digital Display

Invoice description: Multimeter (116)

UPC: 095969324199
UNSPSC: 41113630
Manufacturer PN: FLUKE-116
$396.98 EA
Factory Order
Estimated to ship in 9 days
QTY:


Fluke Digital Multimeter, 600 VAC/VDC, 600 uA, 5 Hz to 50 KHz Frequency, 0.1 Ohm to 40 MOhm Resistance, Safety Rating: CAT III 600 VAC/VDC, 1000 uF Capacitance, 0.5%+2 VAC Accuracy, 0.1 mVAC/VDC Resolution, Digital Display, 9 VDC Alkaline/NEDA 1604A/IEC 6LR61 Battery, No Peak Hold, Yes Diode Test, 1.81 in L x 3.35 in W x 6.58 in H Dimensions, 14 to 122 deg F, Hard Plastic

  • Features

  • Measures temperature, micro amperage and more
  • LoZ function prevents false readings due to ghost voltage
  • Built-in thermometer for HVAC applications
  • Engineered by Fluke, with a three years warranty
  • Micro amperage to test flame sensors
  • Low input impedance helps prevent false readings due to ghost voltage
  • Large white LED backlight to work in poorly lit areas
  • Resistance, continuity, frequency and capacitance
  • Minimum maximum/average with elapsed time to record signal fluctuations
  • Compact ergonomic design for one handed operation

Specifications

ApplicationFor HVAC troubleshooting
Accuracy0.5%+2 VAC
Amperage Rating600 uA
Battery Type9 VDC Alkaline/NEDA 1604A/IEC 6LR61
Capacitance1000 uF
Dimensions1.81 in L x 3.35 in W x 6.58 in H
Diode TestYes
Display TypeDigital
Frequency Rating5 Hz to 50 KHz
MaterialHard Plastic
Peak HoldNo
Resistance0.1 Ohm to 40 MOhm
Resolution0.1 mVAC/VDC
Safety RatingCAT III 600 VAC/VDC
Temperature Rating14 to 122 deg F
Voltage Rating600 VAC/VDC

Additional Information

Includes4 mm Silicone Test Lead Set, 80BK Integrated Temperature Probe, Holster, Installed 9 VDC Battery and User Manual
Warranty3 years
Standards/ApprovalRoHS Compliant|NEDA 1604A|IEC 61010-1/6LR61|ECCN: 3A992|PROP65: This product is in compliance with Prop65, it is not known to contain any chemicals associated with this regulation
Country of OriginUU
