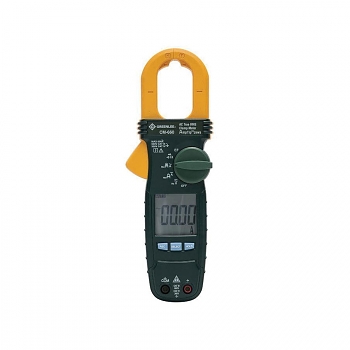

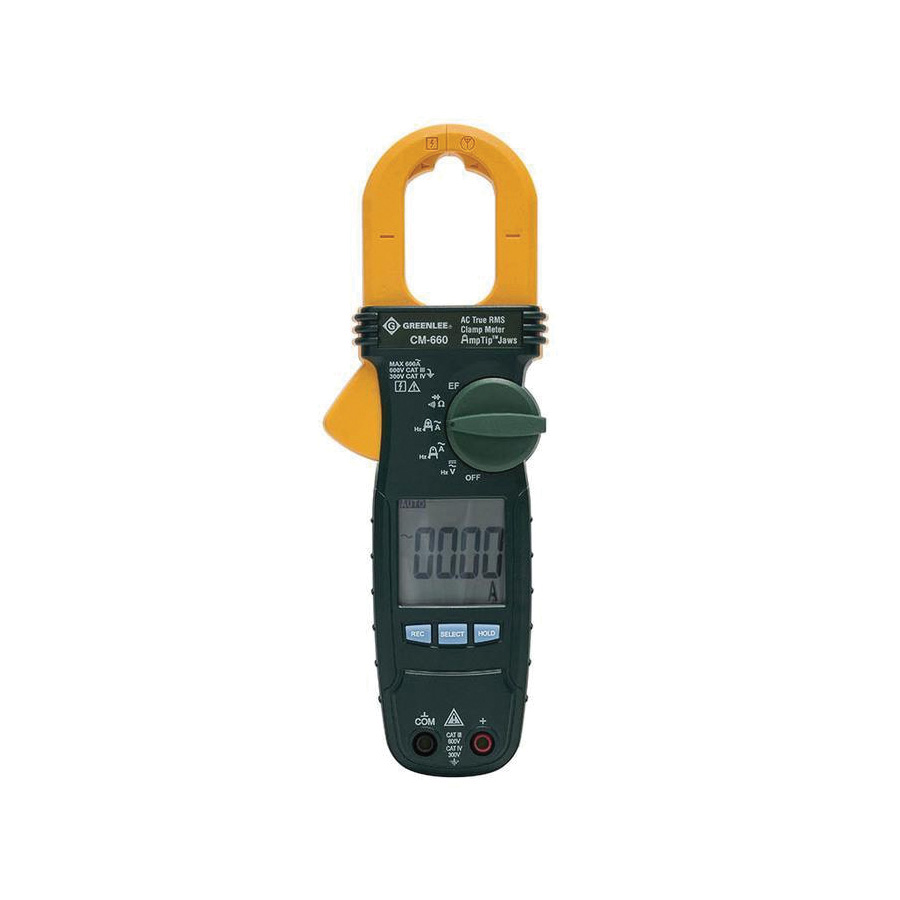

Greenlee GRE CM-660

Greenlee® CM-660 AC True RMS Clamp Meter, 600 VAC/VDC, 60/600 A, 600 Ohm, 6/60 kOhm, 50/60 Hz, 1.18 in Jaw, LCD Display

Invoice description: Clampmeter,cm660

UPC: 783310022114
UNSPSC: 41113630
Manufacturer PN: CM-660
$194.24 EA
Factory Order
Estimated to ship in 14 days
QTY:


Greenlee® Clamp Meter, AC True RMS, 600 VAC/VDC, 60/600 A Electrical Rating, 600 Ohm, 6/60 kOhm Resistance, 50/60 Hz Frequency, 1.18 in Jaw, 6000 Count, LCD Display, Safety Rating: CAT III 600 VAC/CAT IV 300 VAC, 1.5 VDC AAA Battery Power Source

  • Features

  • Measures AC current
  • AC voltage measurement with digital low pass filter for accurate readings on variable frequency drives
  • Also measures DC voltage, resistance, capacitance and frequency
  • Tests continuity and diodes
  • AmpTip™ increases accuracy on small wires and low current
  • Two voltage detection modes - non-contact or using a single test lead
  • Recording of maximum, minimum and average readings

Specifications

TypeAC True RMS
Electrical Ratings600 VAC/VDC, 60/600 A
Resistance600 Ohm, 6/60 kOhm
Frequency Rating50/60 Hz
Jaw Capacity1.18 in
Counts6000
Display TypeLCD

Additional Information

Standards/ApprovalARRA Compliant|cULus Listed|CE Certified
Country of OriginTW
