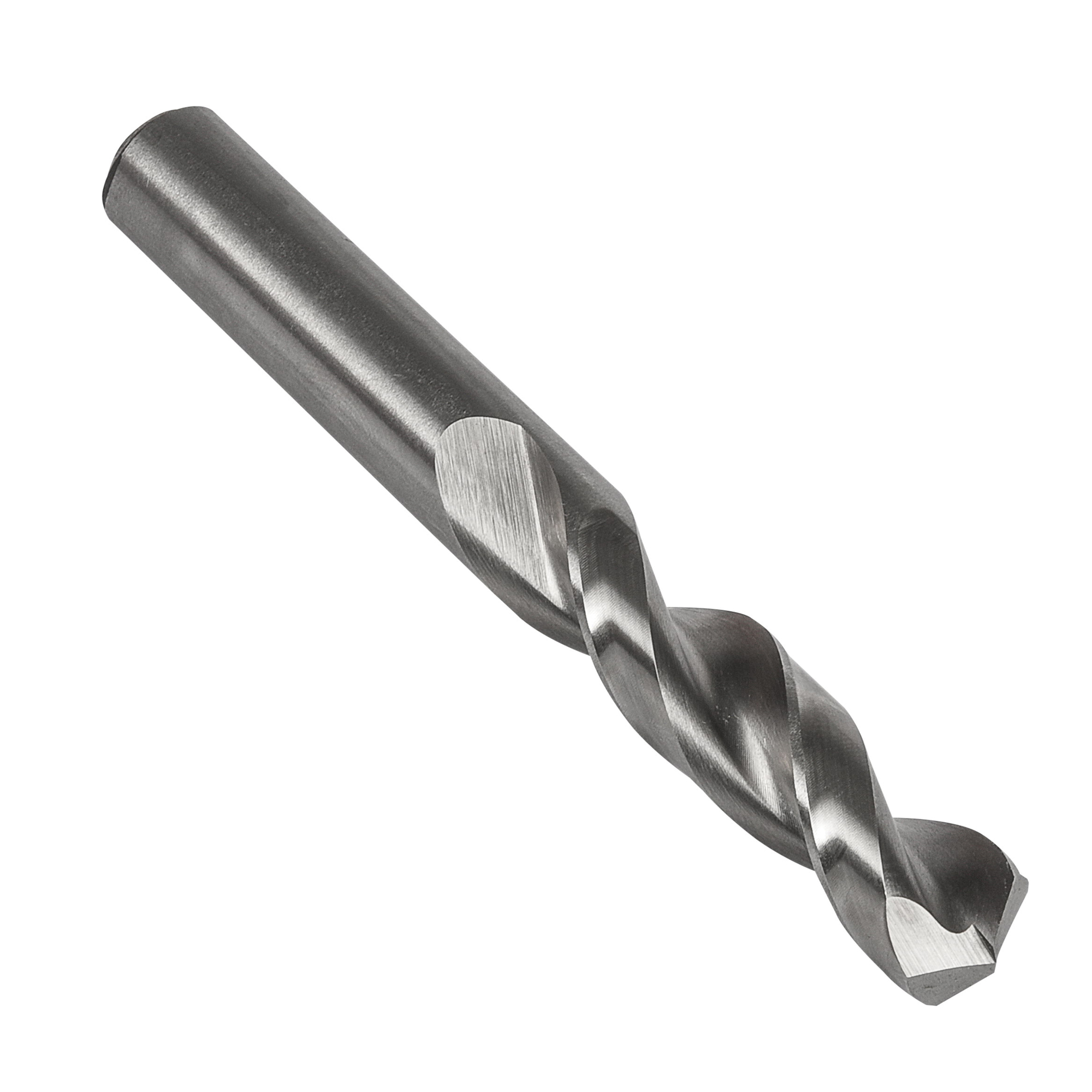

Precision Twist Drill UTD 060040
Factory Order
Precision Twist Drill Screw Machine Drill, General Purpose Heavy Duty, Series: QC41P, Imperial, #40 Drill - Wire, 0.098 in Drill - Decimal Inch, 1-13/16 in Overall Length, 3XD Cutting Depth, 2 Flutes, Parabolic Flute, 13/16 in Flute Length, 0.098 in Shank, Straight Shank, 135 deg Point, Radius Split Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Bright, Applicable Materials: Alloy Steel, Alloyed Aluminum, Alloyed Titanium, Brass, Bronze, Copper, Free Machining Stainless Steel, Ferritic + Austenitic, Hardened and Tempered Steel, Lamellar Graphite, Magnetic Soft Steel, Martensitic, Nodular Graphite/Malleable Cast Iron, Plain Carbon Steel, Structural Steel/Case Carburizing Steel, Unalloyed Aluminum Magnesium, Unalloyed Nickel and Unalloyed Titanium
Features
- Heavy duty parabolic flute design for efficient chip removal, allows greater drilling depths in one pass
- Low thrust design self-centering split point for easier penetration
- Bright finish improves chip flow in soft or non-ferrous materials
