Precision Twist Drill UTD 058215

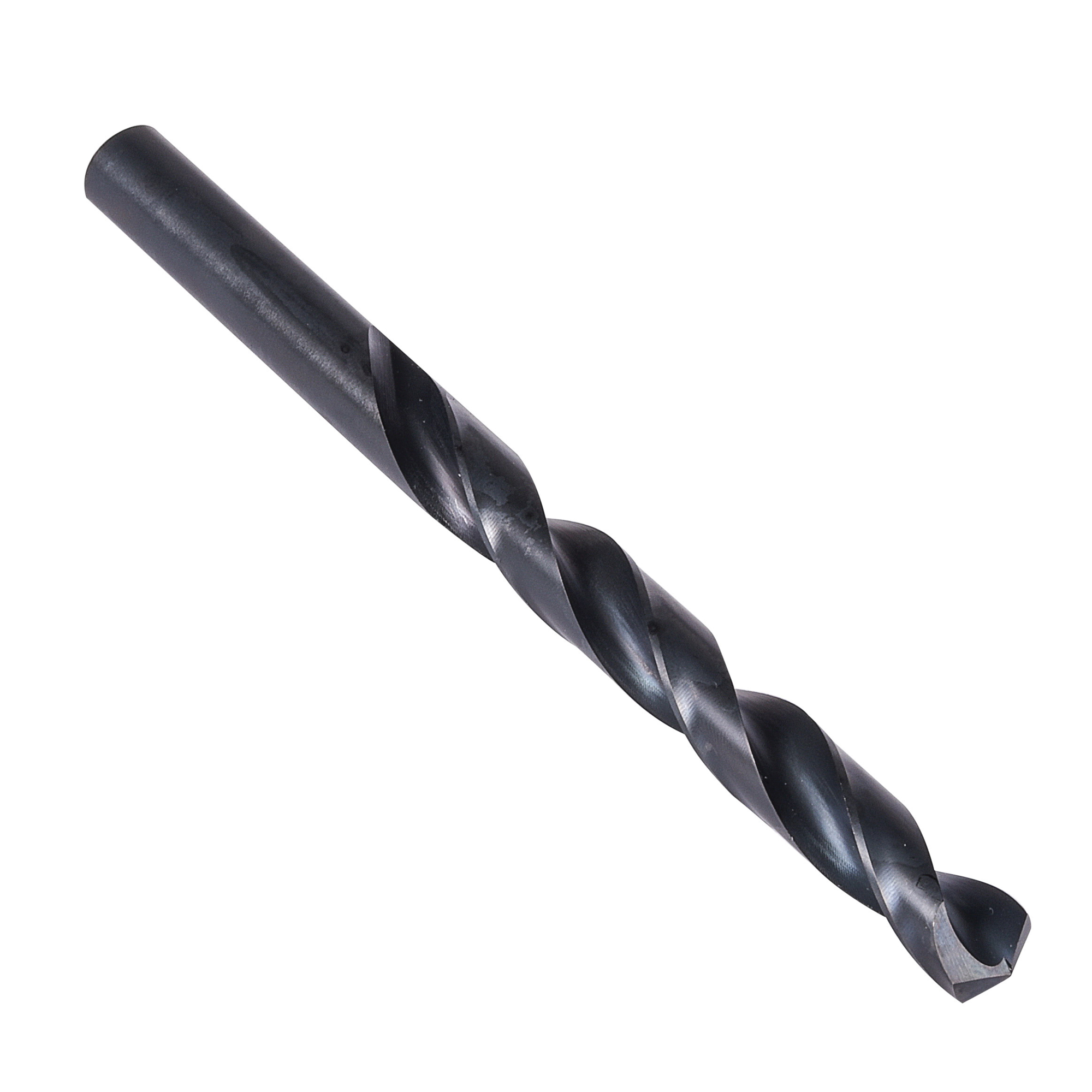

Precision Twist Drill 6001313 502-6 Type B Extra Length Heavy Duty Aircraft Extension Drill, O Drill - Letter, 0.316 in Drill - Decimal Inch, 135 deg Point, HSS
Invoice description:
Ptd 6ac 135sp Type B Hss B Utd 058215 Ptd 50
Factory Order
Precision Twist Drill Aircraft Extension Drill, Type B Extra Length Heavy Duty, Series: 502-6, O Drill - Letter, 0.316 in Drill - Decimal Inch, 6 in Overall Length, 4XD Cutting Depth, 2 Flutes, Spiral Flute, 3-3/16 in Flute Length, 0.316 in Shank, Straight Shank, 135 deg Point, Split/Self-Centering Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Steam Oxide, Applicable Materials: Plain Carbon Steel, Alloy Steel/Hardened and Tempered Steel, Free Machining Stainless Steel, Austenitic, Ferritic + Austenitic, Martensitic, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Unalloyed Titanium, Alloyed Titanium, Nickel
Features
- High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and non-ferrous materials
- Oxide prevents chip building, galling and welding on the work piece, it is commonly used on low carbons, stainless steel and ferrous metals web-thinned
- Tapered web configuration
- No coolant channe
Specifications
Applicable MaterialsPlain Carbon Steel, Alloy Steel/Hardened and Tempered Steel, Free Machining Stainless Steel, Austenitic, Ferritic + Austenitic, Martensitic, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Unalloyed Titanium, Alloyed Titanium, Nickel
Cutting Depth4XD
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Drill Size - Decimal Inch0.316 in
Drill Size - LetterO
FinishSteam Oxide
Flute Length3-3/16 in
Flute TypeSpiral
MaterialHSS
Number of Flutes2
Overall Length6 in
Point Angle135 deg
Point TypeSplit/Self-Centering
Series502-6
Shank Size0.316 in
Shank TypeStraight
TypeType B Extra Length Heavy Duty
Additional Information
Standards/ApprovalANSI Specified|NAS 907|CSA Approved
Country of OriginBR
