MORSE MOR 14923

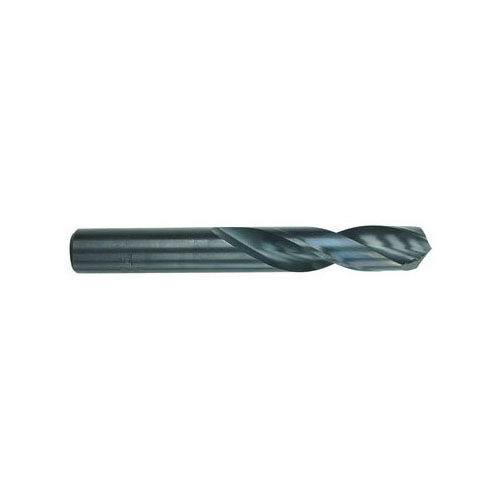

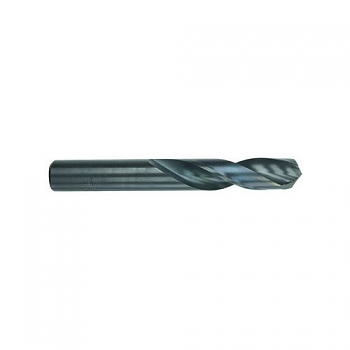

MORSE 14923 1398 1-Stage Type C Heavy Duty Screw Machine Aircraft Drill, #25 Drill - Wire, 0.1495 in Drill - Decimal Inch, 135 deg Point, HSS
Invoice description:
No.25 135d Hss Screw Ma Ch Drl
In stock
(7)
MORSE Aircraft Drill, 1-Stage Type C Heavy Duty Screw Machine, Series: 1398, #25 Drill - Wire, 0.1495 in Drill - Decimal Inch, 2-1/16 in Overall Length, 1 in Cutting Depth, Standard Flute, 1 in Flute Length, Straight Shank, 135 deg Point, Split/Self-Centering Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Black Oxide
Features
- 135 deg self-centering point eliminates walking and reduces thrust
- Short length provides maximum rigidity for increased hole accuracy and extended tool life
- Recommended for drilling a wide range of low to medium tensile strength materials
Specifications
Cutting Depth1 in
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Drill Size - Decimal Inch0.1495 in
Drill Size - Wire#25
FinishBlack Oxide
Flute Length1 in
Flute TypeStandard
MaterialHSS
Overall Length2-1/16 in
Point Angle135 deg
Point TypeSplit/Self-Centering
Series1398
Shank TypeStraight
Type1-Stage Type C Heavy Duty Screw Machine
Additional Information
Standards/ApprovalNAS 907
Country of OriginUS
