MORSE MOR 17136

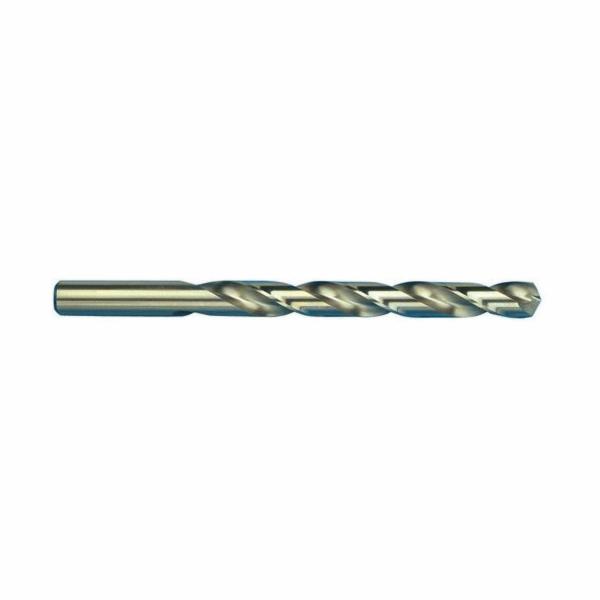

MORSE 17136 2330 1-Stage Type J Heavy Duty Jobber Length Aircraft Drill, 1/8 in Drill - Fraction, 0.125 in Drill - Decimal Inch, 135 deg Point, Cobalt
Invoice description:
Bit Drill Cob 1/8 Jl Hd/jl Brt 135 Split
UPC: 686125171360
UNSPSC:
23241606
Manufacturer PN: 17136
$2.92 EA
Factory OrderEstimated to ship in 7 days
MORSE Aircraft Drill, 1-Stage Type J Heavy Duty Jobber Length, Series: 2330, 1/8 in Drill - Fraction, 0.125 in Drill - Decimal Inch, 2-3/4 in Overall Length, 1-5/8 in Cutting Depth, Standard Flute, 1-5/8 in Flute Length, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, Cobalt Cutting Edge, Cobalt, Straw Oxide, Applicable Materials: High Alloy Steel, Ferrous Casting, Titanium, Inconel and Stainless Steel
Features
- Cobalt steel offers increased hardness, toughness, wear resistance and heat-resistance
- Recommended for drilling tough, high tensile strength materials that generate higher cutting temperatures including high alloy steels, ferrous castings, titanium, inconel, stainless steel sand other difficult-to-drill materia
Specifications
Applicable MaterialsHigh Alloy Steel, Ferrous Casting, Titanium, Inconel and Stainless Steel
Cutting Depth1-5/8 in
Cutting DirectionRight Hand
Cutting Edge MaterialCobalt
Drill Size - Decimal Inch0.125 in
Drill Size - Fraction1/8 in
FinishStraw Oxide
Flute Length1-5/8 in
Flute TypeStandard
MaterialCobalt
Overall Length2-3/4 in
Point Angle135 deg
Point TypeSplit
Series2330
Shank TypeStraight
Type1-Stage Type J Heavy Duty Jobber Length
Additional Information
Standards/ApprovalNAS-907
Country of OriginUS
