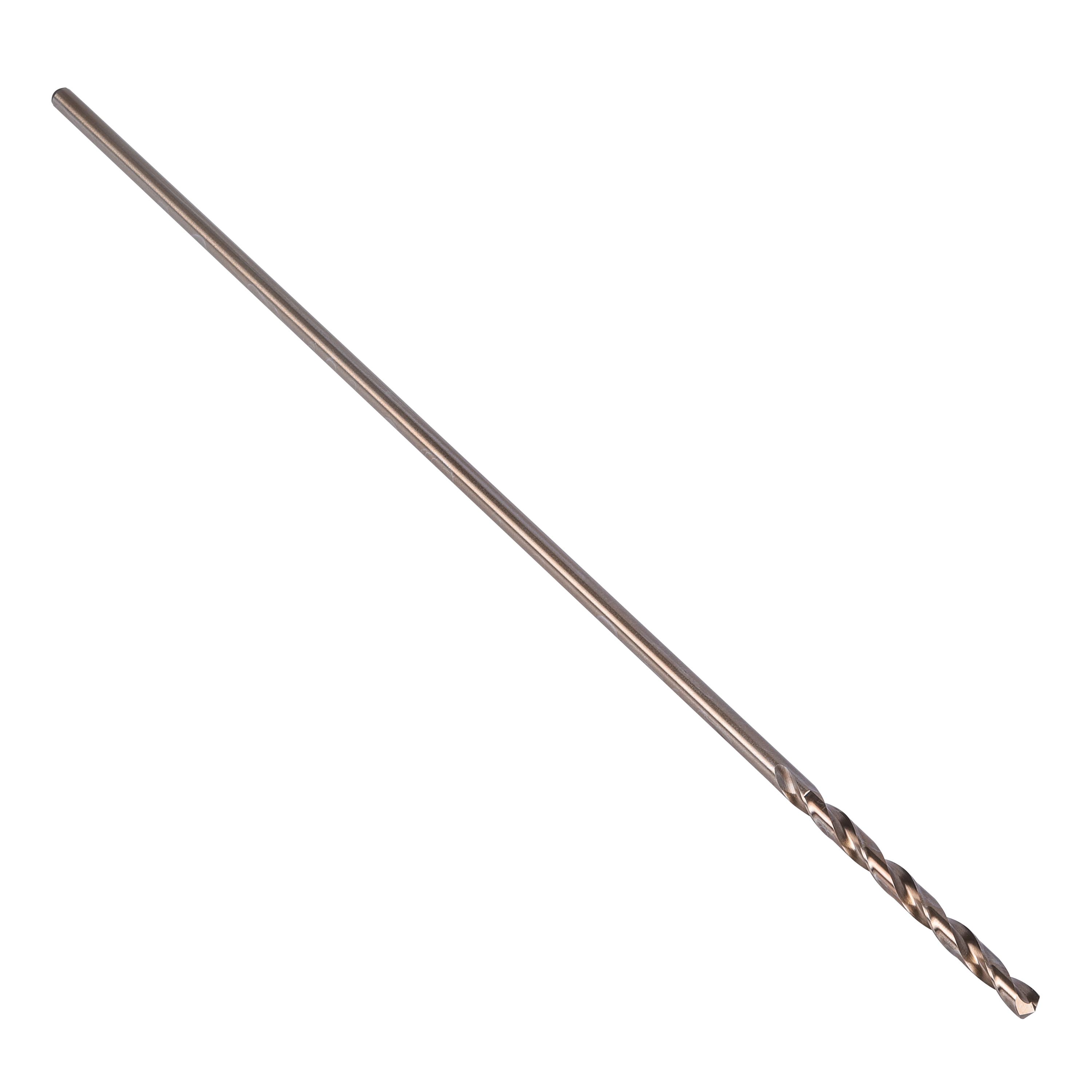

Precision Twist Drill UTD 052840
Precision Twist Drill 5995909 CO501-12 Type J Extra Length Heavy Duty Aircraft Extension Drill, #40 Drill - Wire, 0.098 in Drill - Decimal Inch, 135 deg Point, HSS-E
Invoice description:
Ptd 12ac 135sp Type J Co B Utd 052840 Ptd Co
Factory Order
Precision Twist Drill Aircraft Extension Drill, Type J Extra Length Heavy Duty, Series: CO501-12, #40 Drill - Wire, 0.098 in Drill - Decimal Inch, 12 in Overall Length, 4XD Cutting Depth, 2 Flutes, Spiral Flute, 1-3/8 in Flute Length, 0.098 in Shank, Straight Shank, 135 deg Point, Split/Self-Centering Point, Right Hand Cutting Direction, HSS-E Cutting Edge, HSS-E, Bronze, Applicable Materials: Alloy Steel, Hardened and Tempered Steel, Titanium, Nickel, Lamellar Graphite and Nodular Graphite/Malleable Cast Iron
Features
- Low thrust design for easier penetration
- Cobalt base material with bronze oxide for wear resistance and lubricity
- For enhanced tool life in ferrous materialsWeb-thinned
- Tapered web configuration
- No coolant channel
Specifications
Applicable MaterialsAlloy Steel, Hardened and Tempered Steel, Titanium, Nickel, Lamellar Graphite and Nodular Graphite/Malleable Cast Iron
Cutting Depth4XD
Cutting DirectionRight Hand
Cutting Edge MaterialHSS-E
Drill Size - Decimal Inch0.098 in
Drill Size - Wire#40
FinishBronze
Flute Length1-3/8 in
Flute TypeSpiral
MaterialHSS-E
Number of Flutes2
Overall Length12 in
Point Angle135 deg
Point TypeSplit/Self-Centering
SeriesCO501-12
Shank Size0.098 in
Shank TypeStraight
TypeType J Extra Length Heavy Duty
Additional Information
Standards/ApprovalANSI Specified|NAS 907|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved
Country of OriginBR
