Precision Twist Drill UTD 052611

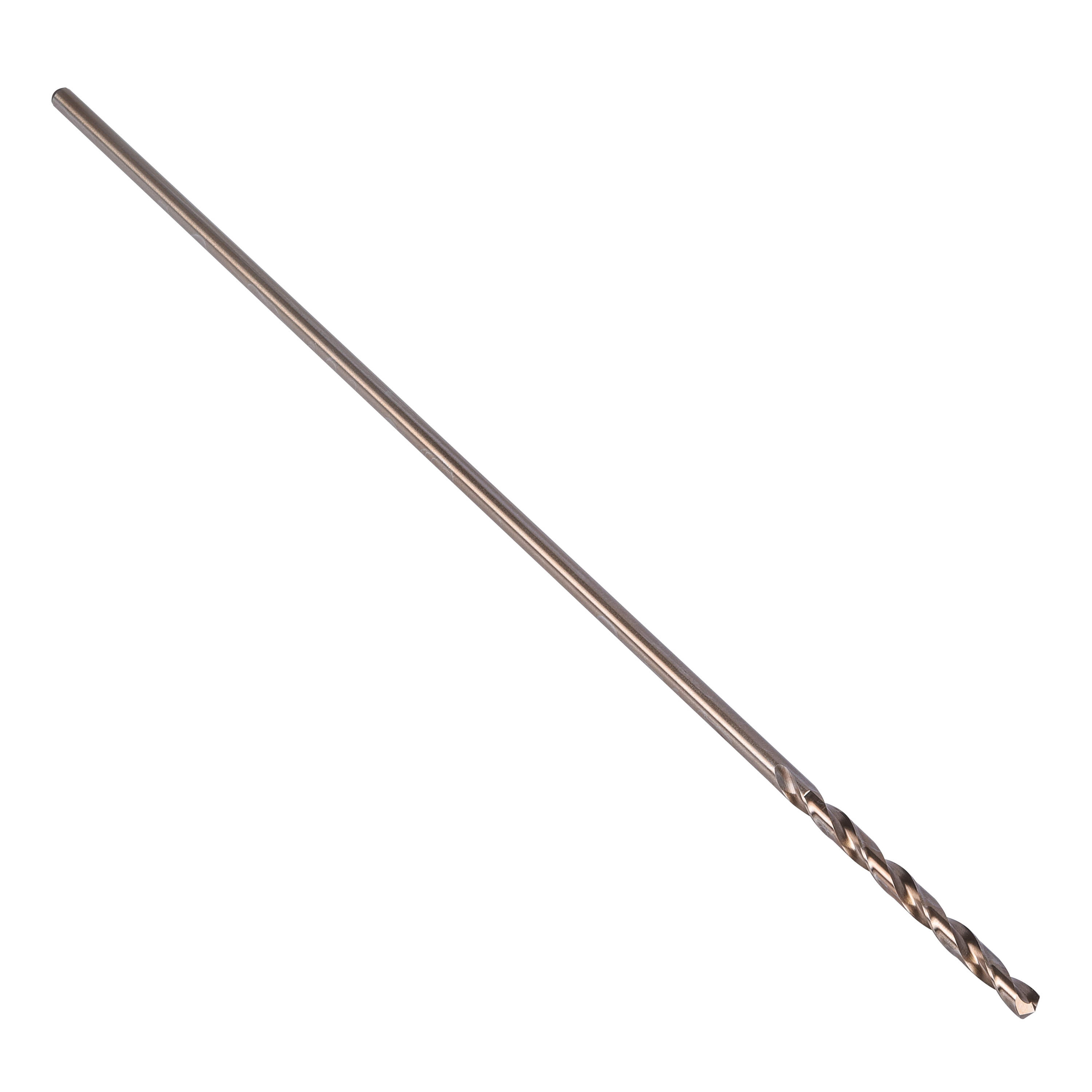

Precision Twist Drill Precision Twist Drill Aircraft Extension Drill, Type J Extra Length Heavy Duty, Series: STFC-ISO-INNEN, 11/64 in Drill Size - Fraction, 0.1719 in Drill Size - Decimal Inch, 12 in Overall Length, 4XD Cutting Depth, 2 Flutes, Spiral Flute, 2-1/8 in Flute Length, 11/64 in Shank, Straight Shank, 135 deg Point, Self-Centering/Split Point, Right Hand Cutting, HSS-E Cutting Edge, HSS-E, Bronze, Applicable Materials: Free Machining Stainless Steel, Austenitic, Ferritic + Austenitic, Martensitic, Precipitation Hardened Steel, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Nickel, Alloyed, Alloy Steel/Hardened Steel and Tempered Steel

• Features

• Cobalt is harder than high speed steel and provides better wear-resistance
• It is commonly used on high tensile alloys
• Oxide gold finish provides a polished finish and prevents chip building, galling and welding on a workpiece
• It is commonly used on low carbon, stainless steel and ferrous metals
• Low thrust design self-centeringWeb-thinned
• Parallel web configuration
• No coolant channel

Specifications

Documents

• Catalog
