Precision Twist Drill UTD 042305

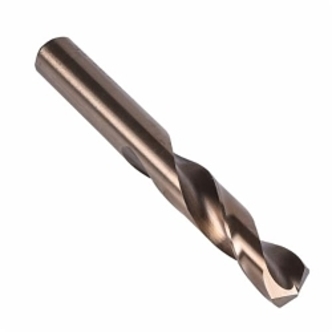

Precision Twist Drill 042305 M42CO Heavy Duty Short Length Drill Bit, E Drill - Letter, 0.25 in Drill - Decimal Inch, HSS-E, Bronze
Invoice description:
Ptd Sm 135sp Co Brz Utd 042305
Factory Order
Precision Twist Drill Short Length Drill Bit, Heavy Duty, Series: M42CO, Imperial, E Drill - Letter, 0.25 in Drill - Decimal Inch, 2-1/2 in Overall Length, 2.5XD Cutting Depth, 2 Flutes, Spiral Flute, 1-3/8 in Flute Length, 1/4 in Shank, Straight Shank, 135 deg Point, Split/Self-Centering Point, Right Hand Cutting Direction, HSS-E Cutting Edge, HSS-E, Bronze, Applicable Materials: Alloy Steel, Ferritic + Austenitic, Free Machining Stainless Steel, Hardened and Tempered Steel, Martensitic, Magnetic Soft Steel, Nickel, Nodular Graphite/Malleable Cast Iron, Plain Carbon Steel, Structural Steel/Case Carburizing Steel and Titanium
Features
- Low thrust design self-centering split point for easier penetration
- Cobalt base material with bronze oxide for wear resistance and lubricity
Specifications
ApplicationFor general drilling applications
Applicable MaterialsAlloy Steel, Ferritic + Austenitic, Free Machining Stainless Steel, Hardened and Tempered Steel, Martensitic, Magnetic Soft Steel, Nickel, Nodular Graphite/Malleable Cast Iron, Plain Carbon Steel, Structural Steel/Case Carburizing Steel and Titanium
Cutting Depth2.5XD
Cutting DirectionRight Hand
Cutting Edge MaterialHSS-E
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.25 in
Drill Size - LetterE
FinishBronze
Flute Length1-3/8 in
Flute TypeSpiral
MaterialHSS-E
Number of Flutes2
Overall Length2-1/2 in
Point Angle135 deg
Point TypeSplit/Self-Centering
SeriesM42CO
Shank Size1/4 in
Shank TypeStraight
TypeHeavy Duty
Additional Information
Standards/ApprovalANSI Specified|CSA Approved
Country of OriginBR
