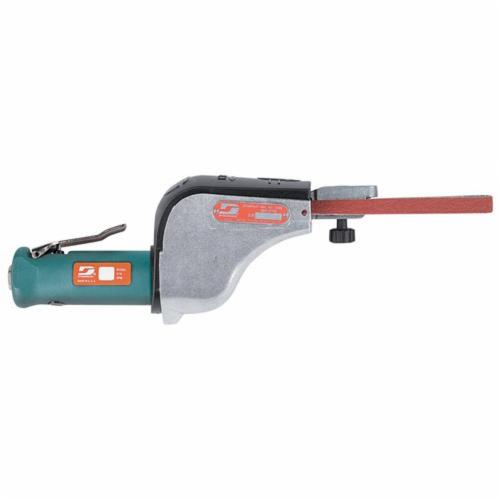

Dynabrade DYN 14000

Dynabrade Dynafile 14000 Straight Line Abrasive Belt Tool, 1/8 to 1/2 in W x 24 in L, 1/2 hp, 31 scfm Air Flow, 90 psi

Invoice description: Sander 1/8-1/2x24" Air B Elt Dynafile 4000 Sfpm

UNSPSC: 27131525
Manufacturer PN: 14000
$933.30 EA
Factory Order
Estimated to ship in 8 days
QTY:


Dynabrade Dynafile Abrasive Belt Tool, Straight Line, Tool/Kit: Bare Tool, 24 in Belt Length, 1/8 to 1/2 in Belt Width, 20000 rpm, 1/2 hp, 31 scfm, 90 psi Air, 1/4 in NPT Air Inlet, Front Exhaust Location, Lever Throttle, 1/4 in ID Minimum Hose Size, 77 dBA, 14.6 in L x 4.6 in H

  • Features

  • World famous Dynafile replaces tedious hand filing and sanding
  • Grind from contact wheel or platen pad
  • Finish and polish using slack of belt
  • For use on metal, plastic, fiberglass, composites, rubber, glass and stone
  • Also accepts a variety of additional contact arms
  • Superior belt tracking permits use of abrasive belts 1/8, 1/4 or 1/2 in W x 24 in L
  • Work in areas as small as 3/8 in Dia
  • Motor easily adjusts to the most comfortable throttle lever position
  • Lightweight composite belt guard allows quick and easy belt change
  • Hard and soft platen pads mount onto contact arms for heavy grinding or contour polishing

Specifications

ApplicationGrinding, Deburring, Blending, Finishing and Surface Conditioning
Air Flow Rate31 scfm
Air Inlet1/4 in NPT
Air Pressure90 psi
Belt Length24 in
Belt Width1/8 to 1/2 in
Dimensions14.6 in L x 4.6 in H
Exhaust LocationFront
Horsepower1/2 hp
Minimum Hose Size1/4 in ID
Sound Level77 dBA
Speed20000 rpm
Throttle StyleLever
Tool/KitBare Tool
TypeStraight Line

Additional Information

Includes11218 Contact Arm For Standard Use
Country of OriginUS
