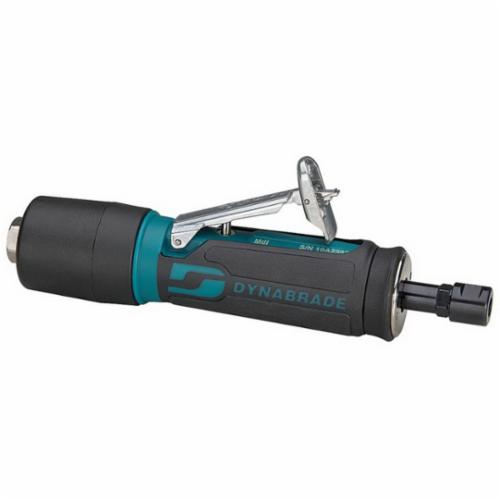

Dynabrade DYN 48325

Dynabrade 48325 Gearless Die Grinder, 1/4 in Collet, 0.4 hp, 23 scfm Air Flow, 90 psi, 25000 rpm Speed

Invoice description: Grinder Die Straight Lin E

UNSPSC: 27131511
Manufacturer PN: 48325
$473.10 EA
Factory Order
Estimated to ship in 20 days
QTY:


Dynabrade Die Grinder, Gearless, Tool/Kit: Bare Tool, 1/4 in Collet, 25000 rpm, 0.4 hp, 23 scfm, 90 psi Air, 1/4 in NPT Air Inlet, Rear Exhaust Location, Lever Throttle, 1/4 in Minimum Hose Size, Straight Line, 79 dBA, 8 in L x 1.7 in H

  • Features

  • 0.4 hp Dynabrade die grinders are perfect for use on metal, fiberglass, carbon fiber, composites and more
  • Dynabrades 0.4 hp (298 W) die grinders are designed for peak efficiency and longer life

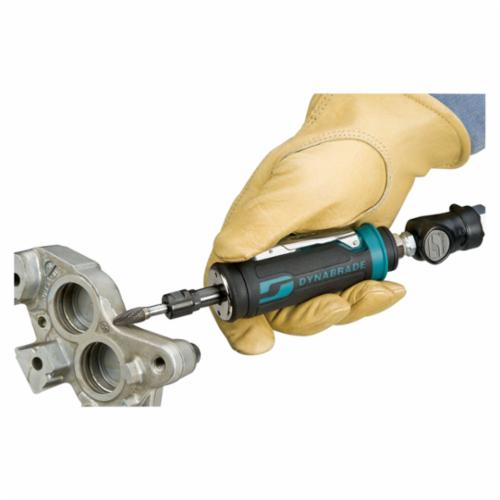

  • Ideal for rapid material removal, deburring, finishing and polishing, these tools represent the finest in Dynabrade quality and innovation
  • Integrated safety-lock throttle lever has a contoured shape for operator comfort, with new dowel pin that minimizes lever wear
  • Increased tool life due to unique pre-filter that provides extra defense against contaminants in air stream
  • Governor controlled Motor (950 to 30000 rpm models) maintains consistent motor speed under load
  • Color-coded for easy identification
  • Ergonomic oval-shaped tool housing conforms to natural shape of hand for optimum comfort
  • Lightweight, tool design, each model weighs 0.5 oz (15 g) less than its previous version
  • 3-vane rotor allows wider offering of tool speeds

Specifications

ApplicationDeburring, Finishing, Polishing and Rapid Material Removal
Air Flow Rate23 scfm
Air Inlet1/4 in NPT
Air Pressure90 psi
Collet Capacity1/4 in
Dimensions8 in L x 1.7 in H
Exhaust LocationRear
Handle TypeStraight Line
Horsepower0.4 hp
Minimum Hose Size1/4 in
Sound Level79 dBA
Speed25000 rpm
Throttle StyleLever
Tool/KitBare Tool
TypeGearless

Additional Information

Includes01485 1/4 in and 01497 6 mm Collet Inserts
Country of OriginUS
