Starrett LSS V436.1MXRL-125

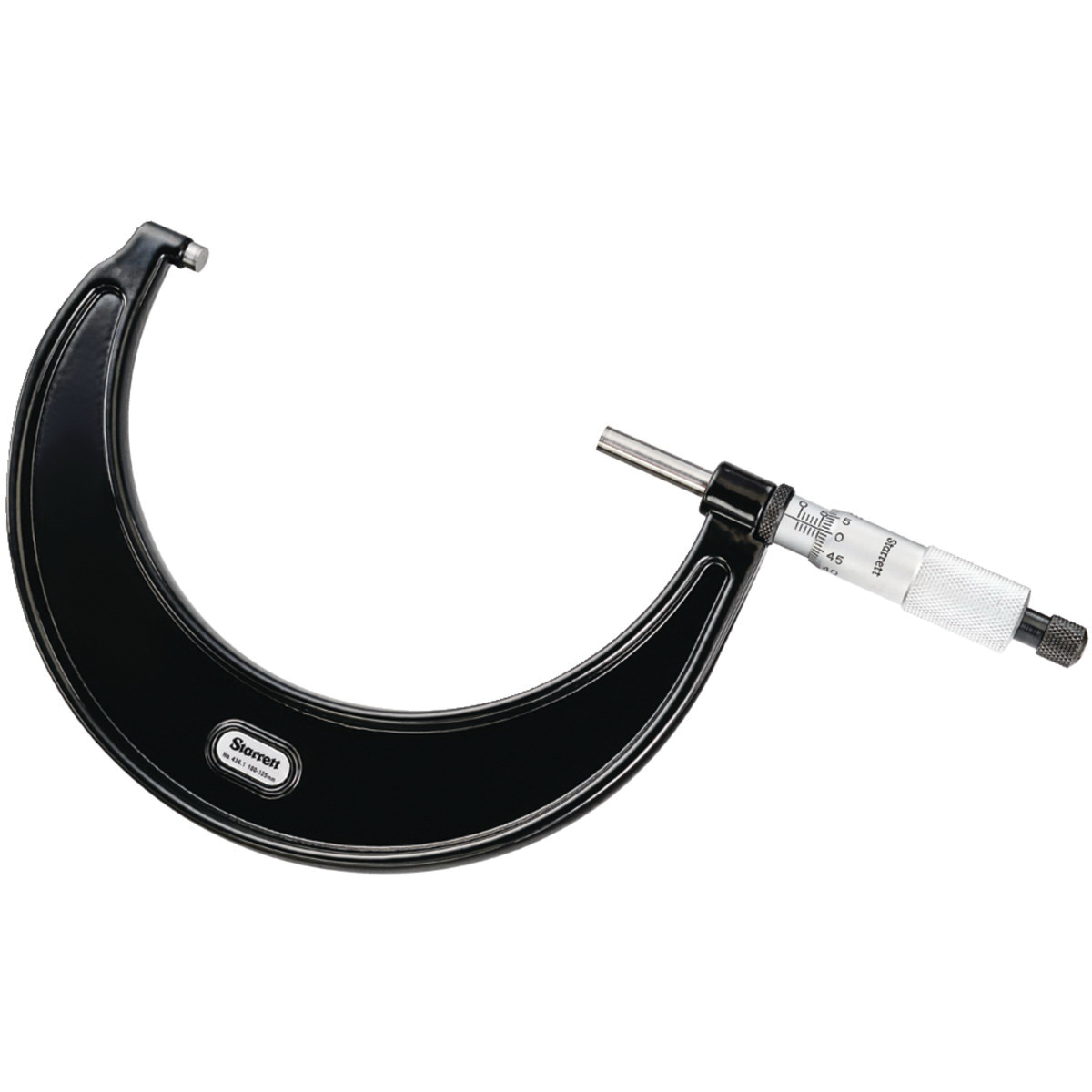

Starrett V436.1MXRL-125 Mechanical Outside Micrometer, 100 to 125 mm, Graduations: 0.001 mm, Carbide Tip, Satin Chrome
Invoice description:
Outside Micrometers 100- 12 5mm (metric) No.
Factory Order
Starrett Outside Micrometer, Mechanical, Series: 436.1M, 100 to 125 mm, +/-0.004 mm Accuracy, Graduations: 0.001 mm, 0.001 mm Resolution, Flat Anvil, Flat Spindle, 1/4 in Spindle Dia, Ratchet Thimble, Carbide Tip, Satin Chrome, 9-35/64 in L x 39/64 in W x 4-31/32 in H
Features
- Advanced sleeve design with staggered lines and distinct figures for precise and easy readability
- Balanced frame and thimble design ensure easy handling and better readability
- Satin chrome finish avoids glare and resists rust
- Accurate, rugged and easy to use
- Gracefully designed tapered frame for use in narrow slots and tight places
- Quick and easy adjustment
- Micro-lapped measuring faces
- Extremely hard and stable one-piece spindle
- The most popular precision micrometer used by skilled workmen worldwide
Specifications
Accuracy+/-0.004 mm
Anvil TypeFlat
Dimensions9-35/64 in L x 39/64 in W x 4-31/32 in H
FinishSatin Chrome
Graduations0.001 mm
MaterialCarbide Tip
Measuring Range100 to 125 mm
Resolution0.001 mm
Series436.1M
Spindle Diameter1/4 in
Spindle TypeFlat
Thimble TypeRatchet
TypeMechanical
Additional Information
Standards/ApprovalPROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP)/which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP)/which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of OriginCN
Owners/user Manual
