Starrett LSS 224MAARLZ

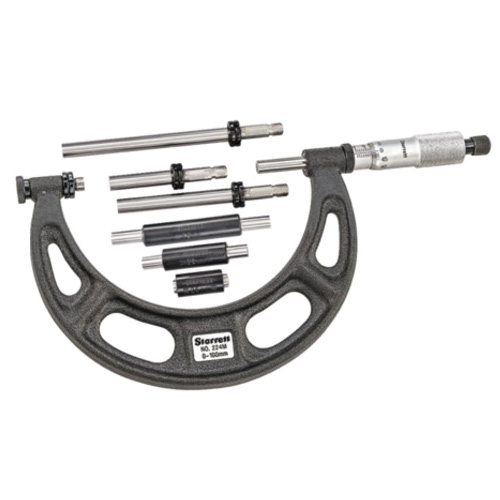

Starrett 224MAARLZ Interchangeable Anvil Outside Micrometer With Ratchet Stop, 0 to 100 mm, Graduations: 0.01 mm, Steel, Satin Chrome
Invoice description:
Interchangeable Anvil Mi Cr Ometers With Ratc
Factory Order
Starrett Outside Micrometer, Interchangeable Anvil, Series: 224M, 0 to 100 mm, Graduations: 0.01 mm, 0.01 mm Resolution, Flat Anvil, Flat Spindle, 0.3 in Spindle Dia, Ratchet Thimble, Steel, Satin Chrome, 8-31/32 in L x 39/64 in W x 4-17/64 in H
Features
- Suitable wrenches are furnished to make necessary adjustments
- Combination ratchet and speeder for uniform pressure and quicker adjustment
- Quick and easy sleeve adjustment
- Advanced sleeve design with staggered lines and distinct figures for precise and easy readability
- Balanced frame and thimble design ensure easy handling and better readability
- Rigid and stable special cast iron frame with appropriate perforations for lightness and ribbed for strength and stability
- Micro-lapped measuring faces
- Large thimble diameter with distinct figures
- Ring-type knurled lock nut for quick and sure locking
- Interchangeable anvils for diversified gaging
Specifications
ApplicationMechanics, Automotive Service, Machine Shops, Toolrooms and Inspection Departments
Anvil TypeFlat
Dimensions8-31/32 in L x 39/64 in W x 4-17/64 in H
FinishSatin Chrome
Graduations0.01 mm
MaterialSteel
Measuring Range0 to 100 mm
Resolution0.01 mm
Series224M
Spindle Diameter0.3 in
Spindle TypeFlat
Thimble TypeRatchet
TypeInterchangeable Anvil
Additional Information
IncludesFrame Sub Sssembly, Adjusting shell, Barrel Spring, Metric Spindle, 0.375-52 Nut, Binder Ring, 0.093X5/16 Pin, Friction Ring, Binder Roll, Outside Shell, Nameplate, Ratchet Assembly, Cap Assembly, Ratchet, Ratchet cap, Ratchet #230 Body, 0.066D X .156L Ra
Standards/ApprovalPROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
Country of OriginUS
