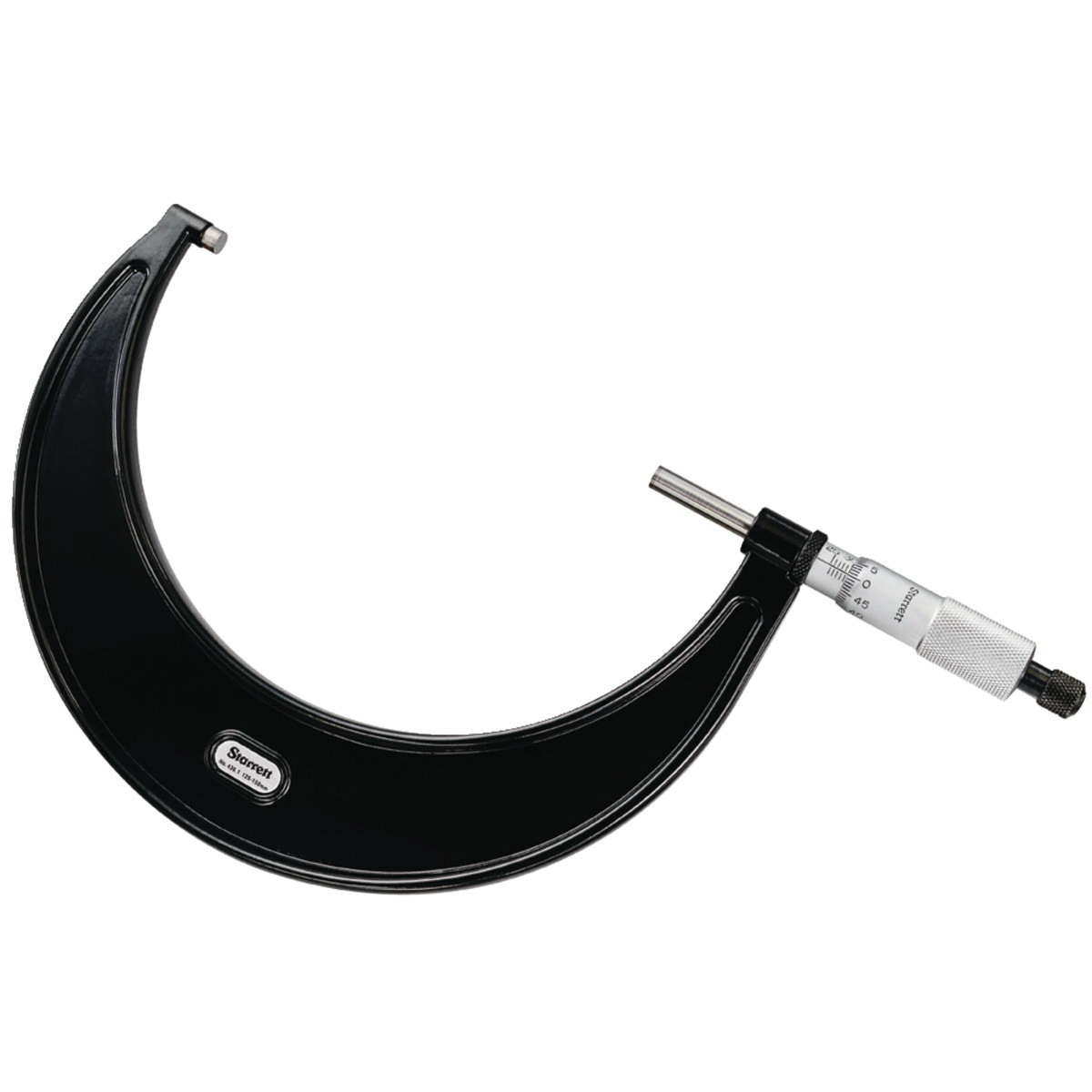

Starrett LSS 436.1MXRL-150

Starrett 436.1MXRL-150 Mechanical Outside Micrometer, 125 to 150 mm, Graduations: 0.01 mm, Carbide Tip, Satin Chrome

Invoice description: Outside Micrometers 125- 15 0mm (metric) No.

UPC: 049659680652
UNSPSC: 41111601
Manufacturer PN: 436.1MXRL-150
$589.16 EA
Factory Order
QTY:


Starrett Outside Micrometer, Mechanical, Series: 436.1M, 125 to 150 mm, +/-0.004 mm Accuracy, Graduations: 0.01 mm, 0.01 mm Resolution, Flat Anvil, Flat Spindle, 1/4 in Spindle Dia, Ratchet Thimble, Carbide Tip, Satin Chrome, 10-1/2 in L x 39/64 in W x 5-19/32 in H

  • Features

  • Advanced sleeve design with staggered lines and distinct figures for precise and easy readability
  • Balanced frame and thimble design ensure easy handling and better readability
  • Satin chrome finish avoids glare and resists rust
  • Accurate, rugged and easy to use
  • Gracefully designed tapered frame for use in narrow slots and tight places
  • Quick and easy adjustment
  • Micro-lapped measuring faces
  • Extremely hard and stable one-piece spindle
  • The most popular precision micrometer used by skilled workmen worldwide

Specifications

Accuracy+/-0.004 mm
Anvil TypeFlat
Dimensions10-1/2 in L x 39/64 in W x 5-19/32 in H
FinishSatin Chrome
Graduations0.01 mm
MaterialCarbide Tip
Measuring Range125 to 150 mm
Resolution0.01 mm
Series436.1M
Spindle Diameter1/4 in
Spindle TypeFlat
Thimble TypeRatchet
TypeMechanical

Additional Information

Standards/ApprovalPROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP)/which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP)/which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of OriginCN
