Starrett LSS V225MF

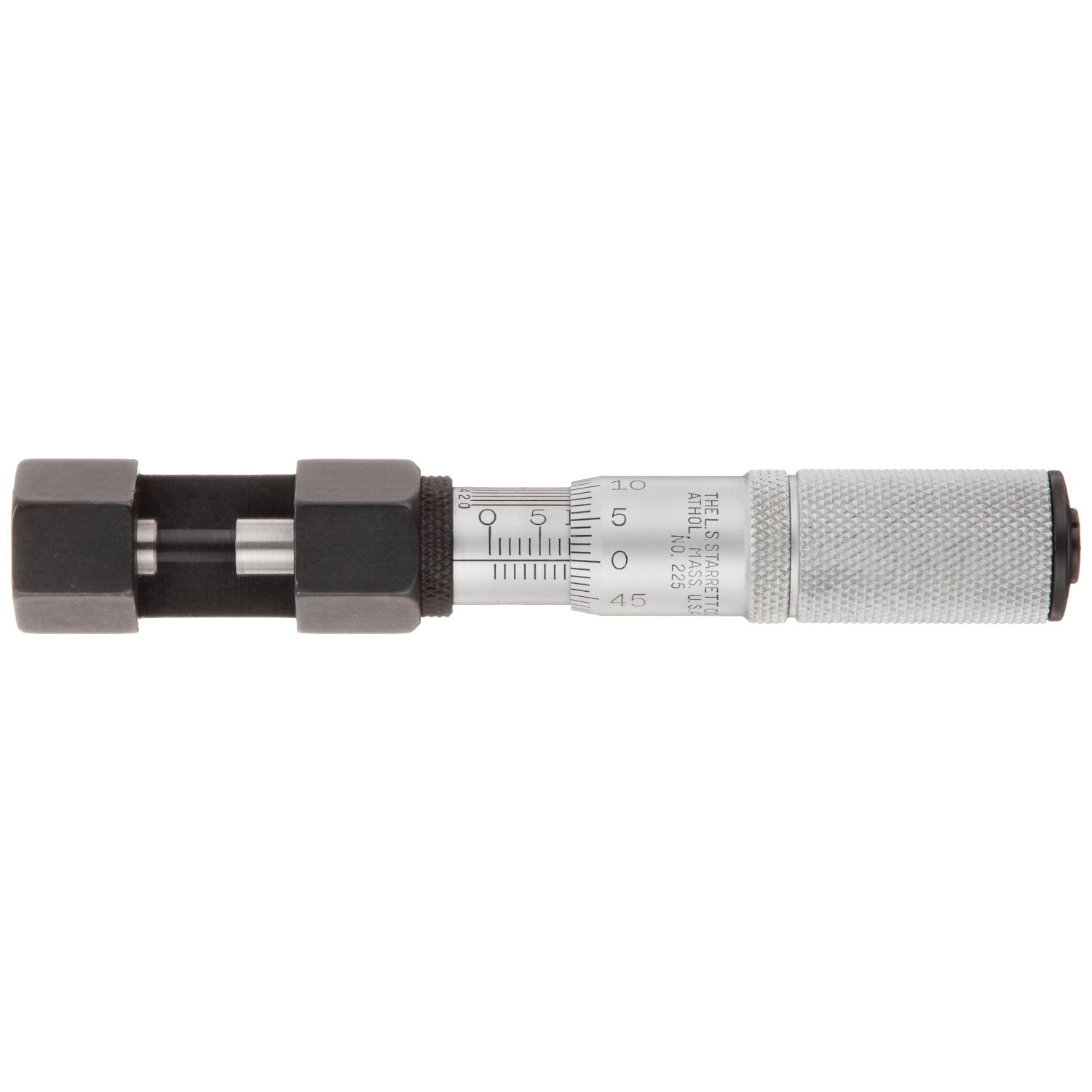

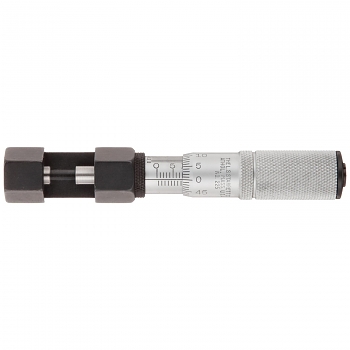

Starrett V225MF Hexagon Wire Micrometer, 0 to 10 mm Measuring, Graduations 0.001 mm, Forged Steel, Satin Chrome
Invoice description:
Wire Micrometers No. 225 2 25m Series 0-10mm
Factory Order
Starrett Wire Micrometer, Hexagon, Series: 225M, 0 to 10 mm Measuring, Graduations: 0.001 mm, 0.001 mm Resolution, Flat Anvil, Flat Spindle, Friction Thimble, Forged Steel, Satin Chrome, 4-1/8 in OAL Dimensions
Features
- Quick and easy adjustment
- Advanced sleeve design with staggered lines and distinct figures for precise and easy readability
- Hex body which stops the micrometer from rolling over
- Anvil and spindle extend below the flat surface
- No-glare starrett satin chrome finish
- Extremely hard and stable one-piece spindle
- Micro-lapped carbide measuring faces
- Smooth friction thimble for uniform pressure
Specifications
ApplicationFor measure diameter of wire
Anvil TypeFlat
Dimensions4-1/8 in OAL
FinishSatin Chrome
Graduations0.001 mm
MaterialForged Steel
Measuring Range0 to 10 mm
Resolution0.001 mm
Series225M
Spindle TypeFlat
Thimble TypeFriction
TypeHexagon
Additional Information
Standards/ApprovalPROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP)/which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP)/which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of OriginUS
