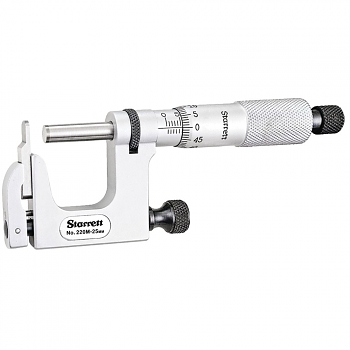

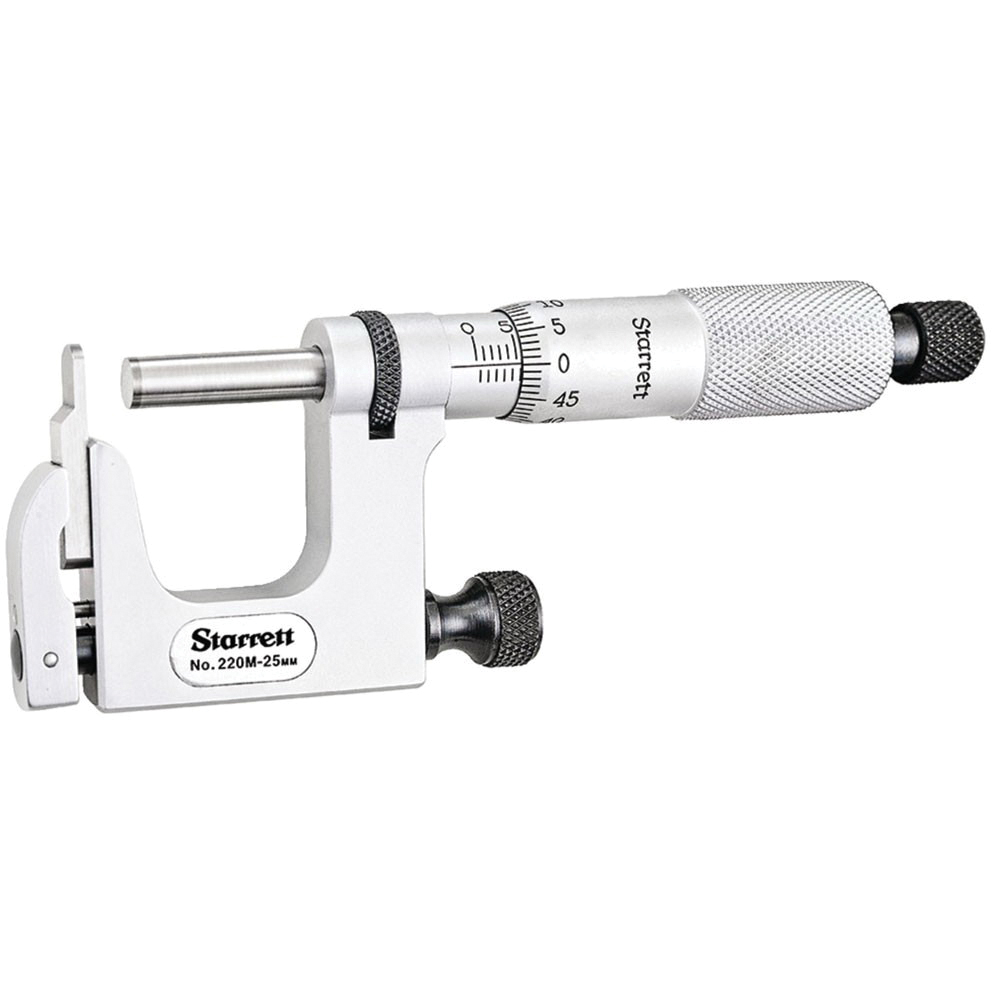

Starrett LSS 220MXRL-25

Starrett 220MXRL-25 Multi-Anvil Micrometer, 0 to 25 mm Measuring, Graduations 0.001 mm, Forged Steel, Satin Chrome

Invoice description: Mul-t-anvil Micrometers No . 220 220m Series

UPC: 049659650501
UNSPSC: 41111601
Manufacturer PN: 220MXRL-25
$587.74 EA
Factory Order
QTY:


Starrett Multi-Anvil Micrometer, Series: 220M, 0 to 25 mm Measuring, +/-0.002 in Accuracy, Graduations: 0.001 mm, 0.001 mm Resolution, Round and Flat Anvil, Flat Spindle, 0.235 in Spindle Diameter, Ratchet Thimble, Forged Steel, Satin Chrome, 4-55/64 in L x 39/64 in W x 1-25/32 in H Dimensions

  • Features

  • Rigid one-piece frame of drop forged steel, ribbed for strength and stability
  • Extremely hard and stable one-piece spindle
  • Micro-lapped measuring faces
  • Will handle a wide variety of measurements impossible to obtain with regular micrometers
  • Starrett satin chrome finish, no-glare and resists rust
  • Advanced sleeve design with staggered lines and distinct figures for precise and easy readability
  • Ring-type knurled lock nut for quick and sure locking
  • Interchangeable anvils are rigidly held in the vise type frame and quickly interchanged by a single lock screw adjustment
  • Two hardened anvils furnished - round anvil approximately 0.120 in diameter and flat anvil approximately 1/8 in and 0.060 in thick

Specifications

ApplicationFor measuring the wall thickness of tubing, cylindrical walls from a hole or slot to an edge, many hard-to-reach locations and the thickness of screw heads, shoulder lengths, etc
Accuracy+/-0.002 in
Anvil TypeRound and Flat
Dimensions4-55/64 in L x 39/64 in W x 1-25/32 in H
FinishSatin Chrome
Graduations0.001 mm
MaterialForged Steel
Measuring Range0 to 25 mm
Resolution0.001 mm
Series220M
Spindle Diameter0.235 in
Spindle TypeFlat
Thimble TypeRatchet

Additional Information

Standards/ApprovalPROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP)/which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP)/which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of OriginUS
