Starrett LSS 211XP

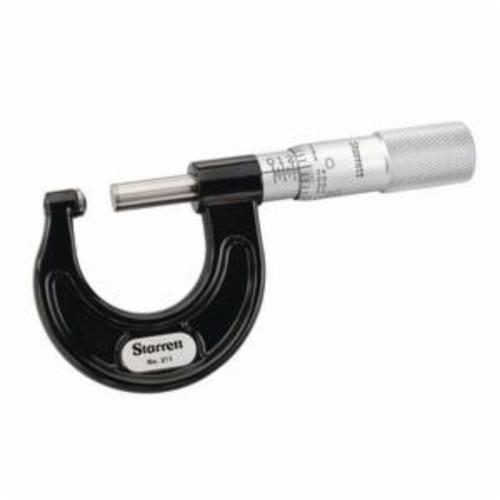

Starrett 211XP Mechanical Micrometer, 0 to 1 in Measuring, Graduations 0.001 in, Steel, Satin Chrome
Invoice description:
Rounded Anvil Outside Mi Cr Ometer No. 211xp
Factory Order
Starrett Micrometer, Mechanical, Series: 211, 0 to 1 in Measuring, +/-0.0001 in Accuracy, Graduations: 0.001 in, 0.001 in Resolution, Round Anvil, Flat Spindle, 1/4 in Spindle Diameter, Plain Thimble, Steel, Satin Chrome, 4-17/32 in L x 2-11/64 in W Dimensions
Features
- The 211 can get into holes as small as 5/8 in and measures upto 1 in
- Advanced sleeve design with staggered lines and distinct figures for precise, easy readability
- Convenient decimal equivalents on inch tools
- Balanced frame and thimble design ensure easy handling and readability
- Quick and easy adjustment
- Starrett satin chrome finish no glare resists rust
- Gracefully designed tapered frame for narrow slots and tight places
- Rigid steel frames
- Extremely hard and stable one-piece spindle
- Micro-lapped carbide measuring faces
Specifications
ApplicationFor measuring the wall thickness of parts such as solid and split bearings, tubing, sleeves, collars, rings and various cylinders
Accuracy+/-0.0001 in
Anvil TypeRound
Dimensions4-17/32 in L x 2-11/64 in W
FinishSatin Chrome
Graduations0.001 in
MaterialSteel
Measuring Range0 to 1 in
Resolution0.001 in
Series211
Spindle Diameter1/4 in
Spindle TypeFlat
Thimble TypePlain
TypeMechanical
Additional Information
Standards/ApprovalPROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
Country of OriginUS
Full Engineering Drawing
