Starrett LSS T485XRL

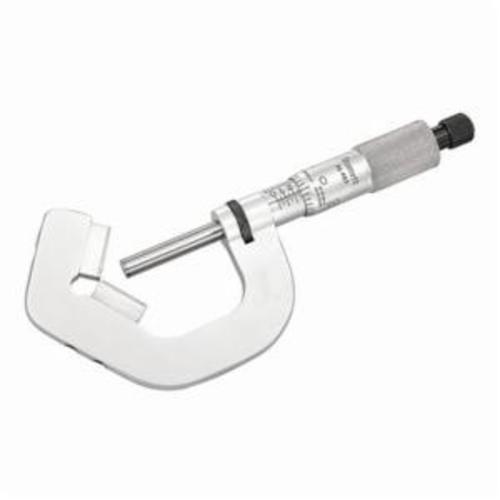

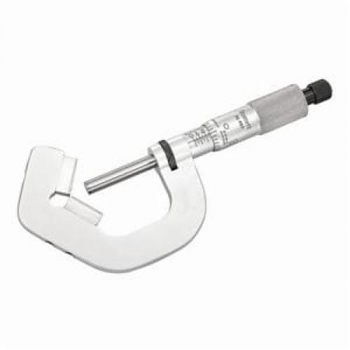

Starrett T485XRL 483 Mechanical Micrometer, 0.078 to 1 in Measuring, Graduations 0.0001 in, Drop Forged Steel, Satin Chrome
Invoice description:
V-anvil Micrometers With C Arbide Facing On
Factory Order
Starrett Micrometer, Mechanical, Series: 483, 0.078 to 1 in Measuring, Graduations: 0.0001 in, V-Shape Anvil, Flat Spindle, Ratchet Thimble, Drop Forged Steel, Satin Chrome, 39/64 in Dia x 6-13/32 in L Dimensions
Features
- Quick and easy adjustment
- Advanced sleeve design with staggered lines and distinct figures for precise, easy readability
- Balanced frame design for comfortable, accurate measuring
- Quick-reading figures every thousandth numbered on inch tools
- No-glare Starrett satin chrome finish
- One-piece frame of drop forged steel
- Extremely hard and stable one-piece spindle
- Ring type knurled lock nut for quick and sure locking
- Combination ratchet and speeder for uniform pressure and quick adjustment
- Micro-lapped carbide measuring faces
Specifications
ApplicationFor used to check out-of-roundness from centerless grinding or other machining operations
Anvil TypeV-Shape
Dimensions39/64 in Dia x 6-13/32 in L
FinishSatin Chrome
Graduations0.0001 in
MaterialDrop Forged Steel
Measuring Range0.078 to 1 in
Series483
Spindle TypeFlat
Thimble TypeRatchet
TypeMechanical
Additional Information
Standards/ApprovalPROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
Country of OriginUS
