Starrett LSS T483XRL-1

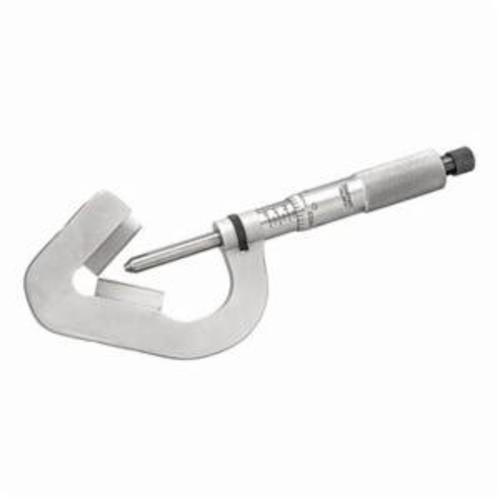

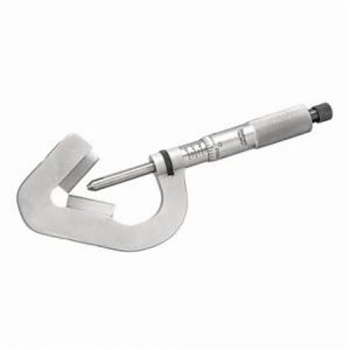

Starrett T483XRL-1 Mechanical Micrometer, 0.093 to 1 in Measuring, Graduations 0.0001 in, Drop Forged Steel, Satin Chrome
Factory Order
Starrett Micrometer, Mechanical, Series: 483, 0.093 to 1 in Measuring, +/-0.0001 in Accuracy, Graduations: 0.0001 in, 0.0001 in Resolution, V-Shape Anvil, Flat Spindle, 1/4 in Spindle Diameter, Ratchet Thimble, Drop Forged Steel, Satin Chrome, 39/64 in Dia x 6-45/64 in L Dimensions
Features
- Quick and easy adjustment
- Advanced sleeve design with staggered lines and distinct figures for precise, easy readability
- Balanced frame design for comfortable, accurate measuring
- Quick-reading figures every thousandth numbered on inch tools
- No-glare Starrett satin chrome finish
- One-piece frame of drop forged steel
- Extremely hard and stable one-piece spindle
- Ring type knurled lock nut for quick and sure locking
- Combination ratchet and speeder for uniform pressure and quick adjustment
- Micro-lapped carbide measuring faces
Specifications

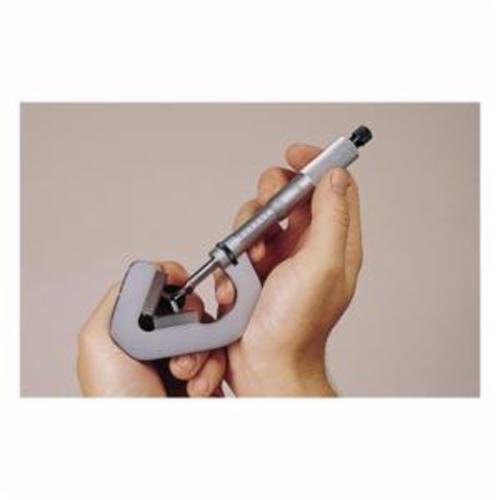

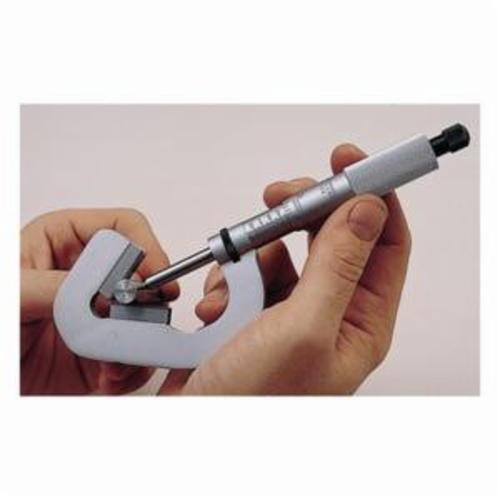

ApplicationFor used to check out-of-roundness from centerless grinding or other machining operations
Accuracy+/-0.0001 in
Anvil TypeV-Shape
Dimensions39/64 in Dia x 6-45/64 in L
FinishSatin Chrome
Graduations0.0001 in
MaterialDrop Forged Steel
Measuring Range0.093 to 1 in
Resolution0.0001 in
Series483
Spindle Diameter1/4 in
Spindle TypeFlat
Thimble TypeRatchet
TypeMechanical
