Starrett LSS T232XRL

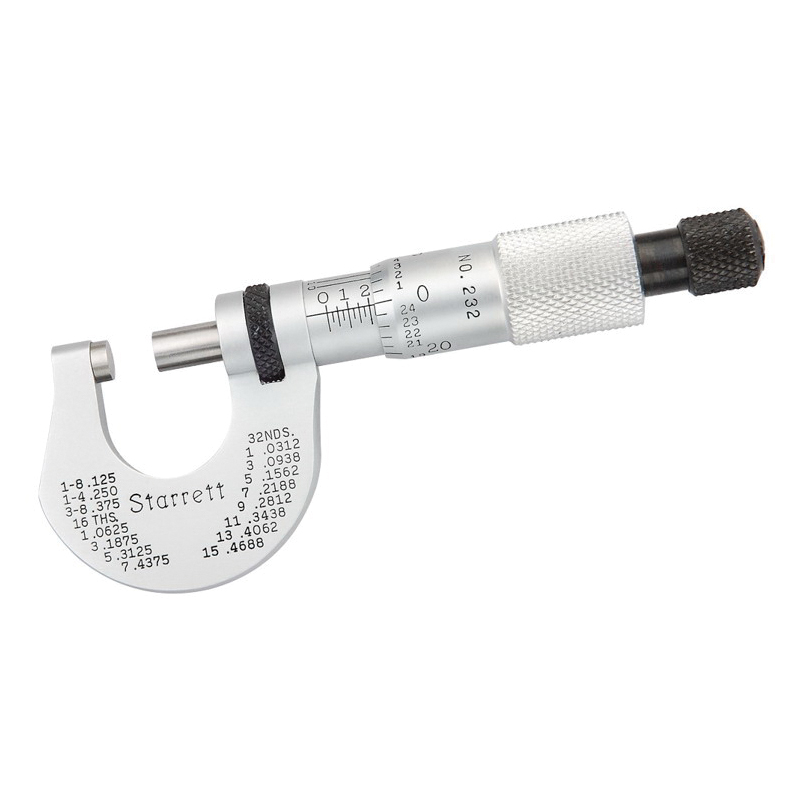

Starrett T232XRL Mechanical Outside Micrometer, 0 to 1/2 in, Graduations: 0.0001 in, Carbide Tip, Satin Chrome
Invoice description:
Outside Micrometers No. 23 2 232m Series 0-1
Factory Order
Starrett Outside Micrometer, Mechanical, Series: 232, 0 to 1/2 in, +/-0.00005 in Accuracy, Graduations: 0.0001 in, 0.0001 in Resolution, Flat Anvil, Flat Spindle, 0.2 in Spindle Dia, Ratchet Thimble, Carbide Tip, Satin Chrome, 3-11/16 in L x 17/32 in W x 1-25/64 in H
Features
- Advanced sleeve design with staggered lines and distinct figures for precise and easy readability
- Balanced frame and thimble design ensure easy handling and better readability
- Quick and easy adjustment
- Micro-lapped measuring faces
- Starrett satin chrome finish, no-glare and resists rust
- Ring-type knurled lock nut for quick and sure locking
- Rigid one-piece frame of drop forged steel
- Extremely hard and stable one-piece spindle
- Combination ratchet and speeder for uniform pressure and quicker adjustment
- Features a ratchet stop, lock nut and carbide face
Specifications
Accuracy+/-0.00005 in
Anvil TypeFlat
Dimensions3-11/16 in L x 17/32 in W x 1-25/64 in H
FinishSatin Chrome
Graduations0.0001 in
MaterialCarbide Tip
Measuring Range0 to 1/2 in
Resolution0.0001 in
Series232
Spindle Diameter0.2 in
Spindle TypeFlat
Thimble TypeRatchet
TypeMechanical
Additional Information
Standards/ApprovalPROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP)/which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP)/which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of OriginUS
