Starrett LSS T216XRL-6

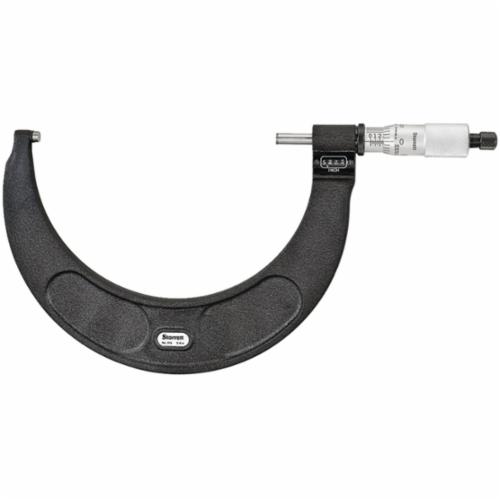

Starrett T216XRL-6 Mechanical Digital Outside Micrometer, 5 to 6 in, Graduations: 0.0001 in, Carbide Tip, Black Frame/Satin Chrome Thimble

Invoice description: Digital Micrometers No. 21 6 216m Series 6 .

UPC: 049659634945
UNSPSC: 41111601
Manufacturer PN: T216XRL-6
$1,165.46 EA
Factory Order
QTY:


Starrett Outside Micrometer, Mechanical Digital, Series: 216, 5 to 6 in, +/-0.0001 in Accuracy, Graduations: 0.0001 in, 0.0001 in Resolution, Flat Anvil, Flat Spindle, 1/4 in Spindle Dia, Ratchet Thimble, Carbide Tip, Black Frame/Satin Chrome Thimble, 10-43/64 in L x 23/32 in W x 5-41/64 in H

  • Features

  • Clear, easily read numbers reduce errors
  • Balanced frame design for comfortable and accurate measuring
  • Gracefully designed tapered frame for use in narrow slots and tight places
  • Starrett no-glare satin chrome finish on thimble and sleeve
  • No-glare black finish on the frame
  • Ring-type knurled lock nut for quick and sure locking
  • Extremely hard and stable one-piece spindle
  • Combination ratchet and speeder for uniform pressure and quicker adjustment

Specifications

Accuracy+/-0.0001 in
Anvil TypeFlat
Dimensions10-43/64 in L x 23/32 in W x 5-41/64 in H
FinishBlack Frame/Satin Chrome Thimble
Graduations0.0001 in
MaterialCarbide Tip
Measuring Range5 to 6 in
Resolution0.0001 in
Series216
Spindle Diameter1/4 in
Spindle TypeFlat
Thimble TypeRatchet
TypeMechanical Digital

Additional Information

Standards/ApprovalPROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP)/which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP)/which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of OriginUS
