Starrett LSS T216XRL-5

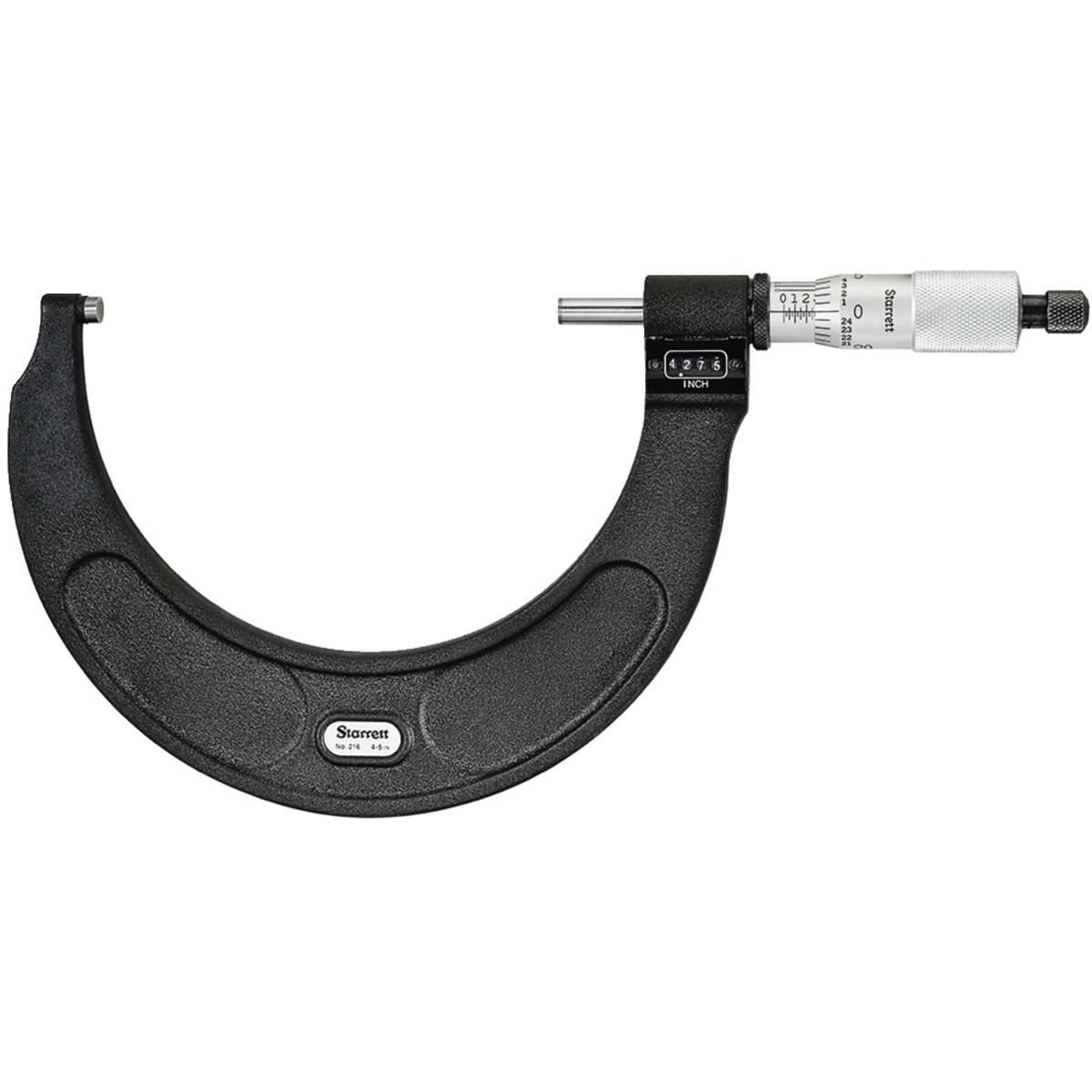

Starrett T216XRL-5 Mechanical Digital Outside Micrometer, 4 to 5 in, Graduations: 0.0001 in, Carbide Tip, Black Frame/Satin Chrome Thimble

Invoice description: Digital Micrometers No. 21 6 216m Series 5 .

UPC: 049659634938
UNSPSC: 41111601
Manufacturer PN: T216XRL-5
$1,158.30 EA
Factory Order
QTY:


Starrett Outside Micrometer, Mechanical Digital, Series: 216, 4 to 5 in, +/-0.0001 in Accuracy, Graduations: 0.0001 in, 0.0001 in Resolution, Flat Anvil, Flat Spindle, 1/4 in Spindle Dia, Ratchet Thimble, Carbide Tip, Black Frame/Satin Chrome Thimble, 9-21/32 in L x 23/32 in W x 5-1/64 in H

  • Features

  • Clear, easily read numbers reduce errors
  • Balanced frame design for comfortable and accurate measuring
  • Gracefully designed tapered frame for use in narrow slots and tight places
  • Starrett no-glare satin chrome finish on thimble and sleeve
  • No-glare black finish on the frame
  • Ring-type knurled lock nut for quick and sure locking
  • Extremely hard and stable one-piece spindle
  • Combination ratchet and speeder for uniform pressure and quicker adjustment

Specifications

Accuracy+/-0.0001 in
Anvil TypeFlat
Dimensions9-21/32 in L x 23/32 in W x 5-1/64 in H
FinishBlack Frame/Satin Chrome Thimble
Graduations0.0001 in
MaterialCarbide Tip
Measuring Range4 to 5 in
Resolution0.0001 in
Series216
Spindle Diameter1/4 in
Spindle TypeFlat
Thimble TypeRatchet
TypeMechanical Digital

Additional Information

Standards/ApprovalPROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
Country of OriginUS
