Starrett LSS S668BZ
Starrett S668BZ Shaft Alignment Clamp, Stainless Steel Band/Aluminum Frame Body
Invoice description:
Shaft Alignment Clamps N O. 668 Series Shaft
Factory Order
Starrett Shaft Alignment Clamp, Stainless Steel Band/Aluminum Frame Body, Black Anodized
Features
- Light weight clamp design made of black anodized aluminum
- Rigid 3/8 in Dia stainless steel indicator posts provided in three lengths 5 in, 7-7/16 in and 9 in
- Extension plate allows for added radial clearance
- Heavy duty roller chain accommodates upto a 7-1/2 in Dia shaft
- Excess roller chain can be secured to the side of the chain clamp
- A second shaft alignment clamp can be mounted across from the first clamp to act as a vertical "target" for face alignment
- System is capable of addressing radial and angular misalignment problems and can be set up within minutes
- V-Shaped jaw
Specifications
ApplicationFor alignment of motors, pumps and compressors
Body MaterialStainless Steel Band/Aluminum Frame
FinishBlack Anodized
Additional Information

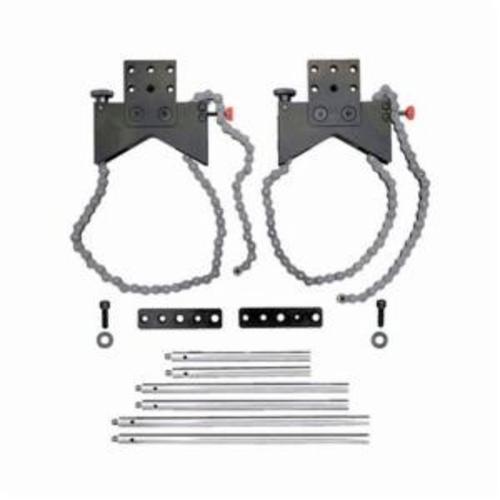

Includes(2) PT27981 5 in, (2) 657G 7-7/16 in, (2) PT27982 9 in Posts, (2) 668 Chain Clamp and (2) PT99529 Extension Plate with Fitted Case
Standards/ApprovalPROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
Country of OriginUS
