Starrett LSS 724MLZ-750

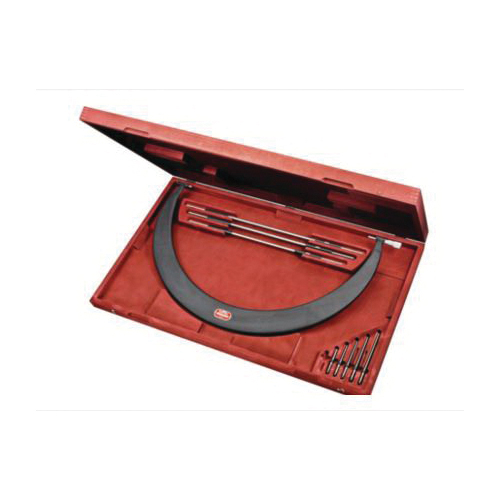

Starrett 724MLZ-750 Interchangeable Anvil Plain Tubular Bow Outside Micrometer, 600 to 750 mm, Graduations: 0.01 mm, Steel, Satin Chrome
Invoice description:
Tubular Bow Type Microme Te Rs With Interchan
Factory Order
Starrett Outside Micrometer, Interchangeable Anvil Plain Tubular Bow, Series: 724M, 600 to 750 mm, +/-0.0003 in Accuracy, Graduations: 0.01 mm, 0.01 mm Resolution, Flat Anvil, Flat Spindle, 0.3 in Spindle Dia, Steel, Satin Chrome
Features
- Starrett satin chrome finish, no-glare and resists rust
- Advanced sleeve design with staggered lines and distinct figures for precise and easy readability
- Large thimble diameter with distinct figures
- Balanced frame and thimble design ensure easy handling and better readability
- Ring-type knurled lock nut for quick and sure locking
- Hollow tubular frame design combining lightest possible weight with rigidity
- Extremely hard and stable one-piece spindle
- Interchangeable anvils for diversified gaging
- Standards with insulated grips
- Micro-lapped measuring faces
Specifications
Accuracy+/-0.0003 in
Anvil TypeFlat
FinishSatin Chrome
Graduations0.01 mm
MaterialSteel
Measuring Range600 to 750 mm
Resolution0.01 mm
Series724M
Spindle Diameter0.3 in
Spindle TypeFlat
TypeInterchangeable Anvil Plain Tubular Bow
Additional Information
Includes30 in Frame Blank, Lock Nut Kit, 0.475-60 Nut, 0.475 inx0.65 inx0.006 in Spring Washer, Stem, Metric Spindle, Barrel Spring, 0.157-40 SLOTx0.377 in Long Screw, (2) 2 Slotted P.H.x0.188 Long Screw, Small Plate Blank, Outside Metric Shell, Adjustable Metric
Standards/ApprovalPROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
Country of OriginUS
