Starrett LSS 724MLZ-1350

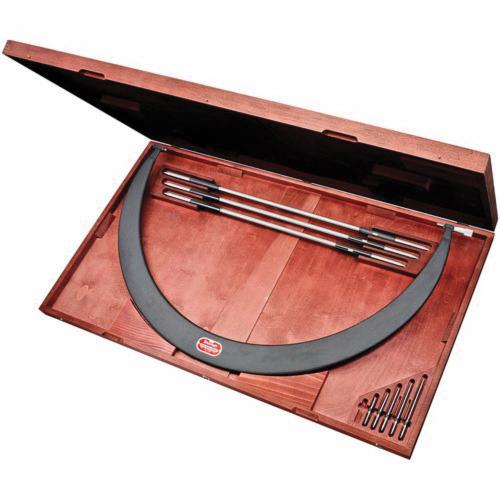

Starrett 724MLZ-1350 Interchangeable Anvil Plain Tubular Bow Outside Micrometer, 1200 to 1350 mm, Graduations: 0.01 mm, Steel, Satin Chrome
Factory Order
Starrett Outside Micrometer, Interchangeable Anvil Plain Tubular Bow, Series: 724M, 1200 to 1350 mm, +/-0.0003 in Accuracy, Graduations: 0.01 mm, 0.01 mm Resolution, Flat Anvil, Flat Spindle, 0.3 in Spindle Dia, Steel, Satin Chrome
Features
- Starrett satin chrome finish, no-glare and resists rust
- Advanced sleeve design with staggered lines and distinct figures for precise and easy readability
- Large thimble diameter with distinct figures
- Balanced frame and thimble design ensure easy handling and better readability
- Ring-type knurled lock nut for quick and sure locking
- Hollow tubular frame design combining lightest possible weight with rigidity
- Extremely hard and stable one-piece spindle
- Interchangeable anvils for diversified gaging
- Standards with insulated grips
- Micro-lapped measuring faces
Specifications
Accuracy+/-0.0003 in
Anvil TypeFlat
FinishSatin Chrome
Graduations0.01 mm
MaterialSteel
Measuring Range1200 to 1350 mm
Resolution0.01 mm
Series724M
Spindle Diameter0.3 in
Spindle TypeFlat
TypeInterchangeable Anvil Plain Tubular Bow
