Starrett LSS 724LZ-42

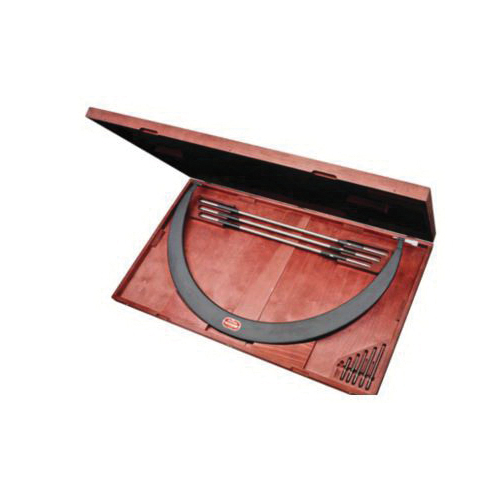

Starrett 724LZ-42 Interchangeable Anvil Plain Tubular Bow Outside Micrometer, 36 to 42 in, Graduations: 0.001 in, Steel, Satin Chrome
Invoice description:
Tubular Bow Type Microme Te Rs With Interchan
Factory Order
Starrett Outside Micrometer, Interchangeable Anvil Plain Tubular Bow, Series: 724, 36 to 42 in, Graduations: 0.001 in, 0.001 in Resolution, Flat Anvil, Flat Spindle, Friction Thimble, Steel, Satin Chrome
Features
- Starrett satin chrome finish, no-glare and resists rust
- Advanced sleeve design with staggered lines and distinct figures for precise and easy readability
- Large thimble diameter with distinct figures
- Balanced frame and thimble design ensure easy handling and better readability
- Ring-type knurled lock nut for quick and sure locking
- Hollow tubular frame design combining lightest possible weight with rigidity
- Extremely hard and stable one-piece spindle
- Interchangeable anvils for diversified gaging
- Standards with insulated grips
- Micro-lapped measuring faces
Specifications
Anvil TypeFlat
FinishSatin Chrome
Graduations0.001 in
MaterialSteel
Measuring Range36 to 42 in
Resolution0.001 in
Series724
Spindle TypeFlat
Thimble TypeFriction
TypeInterchangeable Anvil Plain Tubular Bow
Additional Information
Includes42 in Frame Blank, Large Plate Blank, (2) No 2 Slotted P.H x 0.188 in Long Screw, 0.157-40 Slot x 0.377 in Long Screw, Stem Sub Assembly, Outside Shell, English Spindle, Adj. English Shell, 0.500-52 Nut, Lock Nut Kit, 0.475-60 Nut, 0.475 in x 0.650 in x 0
Standards/ApprovalPROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
Country of OriginUS
