Starrett LSS 724LZ-24

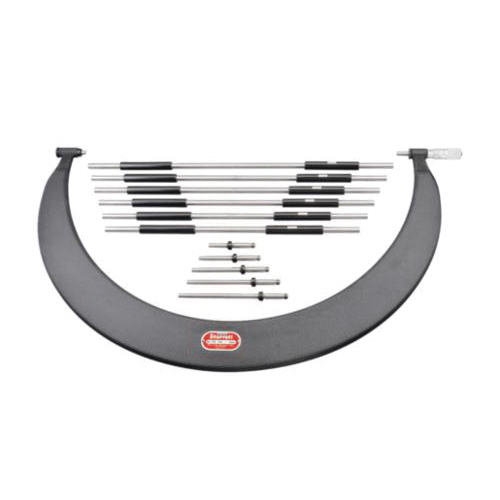

Starrett® 724LZ-24 Interchangeable Anvil Plain Tubular Bow Outside Micrometer, 18 to 24 in, Graduations: 0.001 in, Steel, Satin Chrome

UPC: 049659529951
UNSPSC: 41111601
Manufacturer PN: 724LZ-24
$3,776.64 EA
Factory Order
QTY:


Starrett® Outside Micrometer, Interchangeable Anvil Plain Tubular Bow, Series: 724, 18 to 24 in, +/-0.0003 in Accuracy, Graduations: 0.001 in, 0.001 in Resolution, Flat Anvil, Flat Spindle, 0.3 in Spindle Dia, Friction Thimble, Steel, Satin Chrome

  • Features

  • Starrett satin chrome finish, no-glare and resists rust
  • Advanced sleeve design with staggered lines and distinct figures for precise and easy readability
  • Large thimble diameter with distinct figures
  • Balanced frame and thimble design ensure easy handling and better readability
  • Ring-type knurled lock nut for quick and sure locking
  • Hollow tubular frame design combining lightest possible weight with rigidity
  • Extremely hard and stable one-piece spindle
  • Interchangeable anvils for diversified gaging
  • Standards with insulated grips
  • Micro-lapped measuring faces

Specifications

TypeInterchangeable Anvil Plain Tubular Bow
Series724
Measuring Range18 to 24 in
Accuracy+/-0.0003 in
Graduations0.001 in
Resolution0.001 in
Anvil TypeFlat
Spindle TypeFlat
Spindle Diameter0.3 in
Thimble TypeFriction
